A Better eTrike!! Mooncool TK1 Fat 20" | Cheaper Than Lectric XP Trike
E-Bike Reviews
Pre-assembled
65%
Range
48~72 KM
Top Speed
25 km/h
Load Capacity
400 LBS
Motor
500W
Battery
48V*14.5Ah

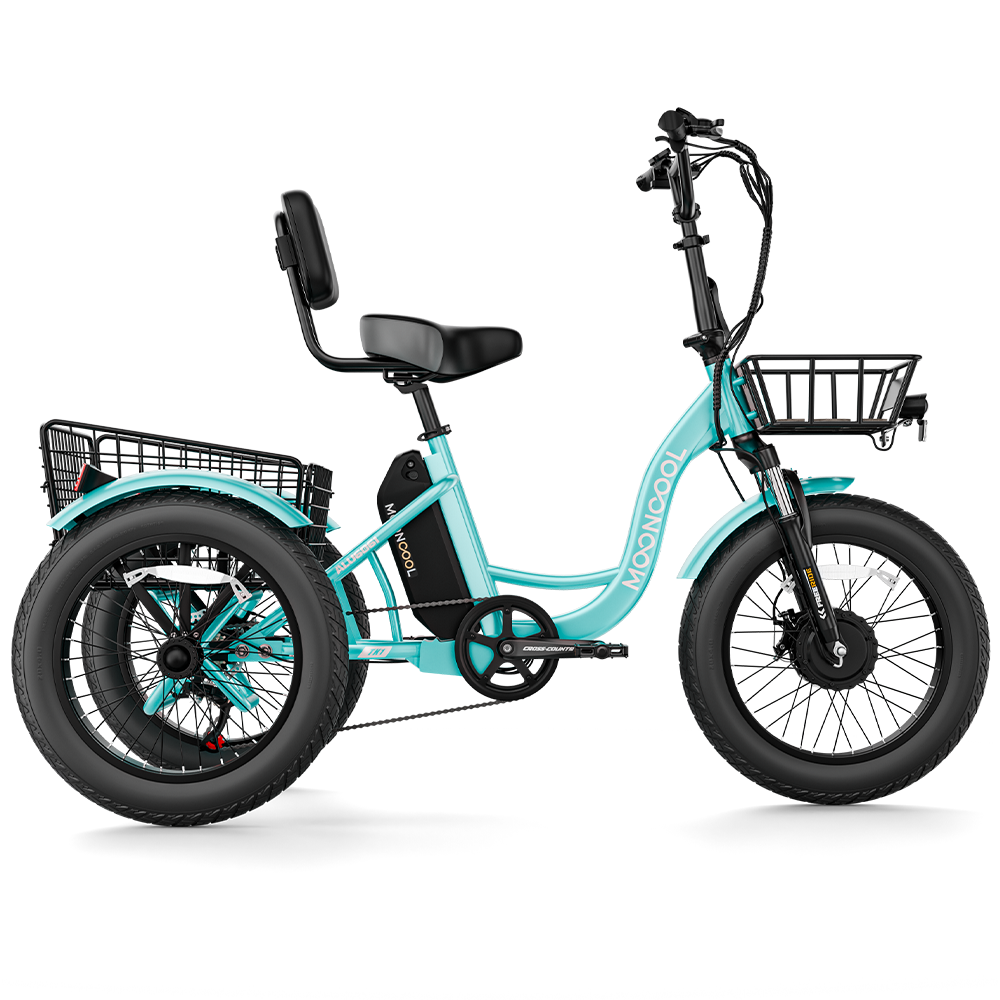

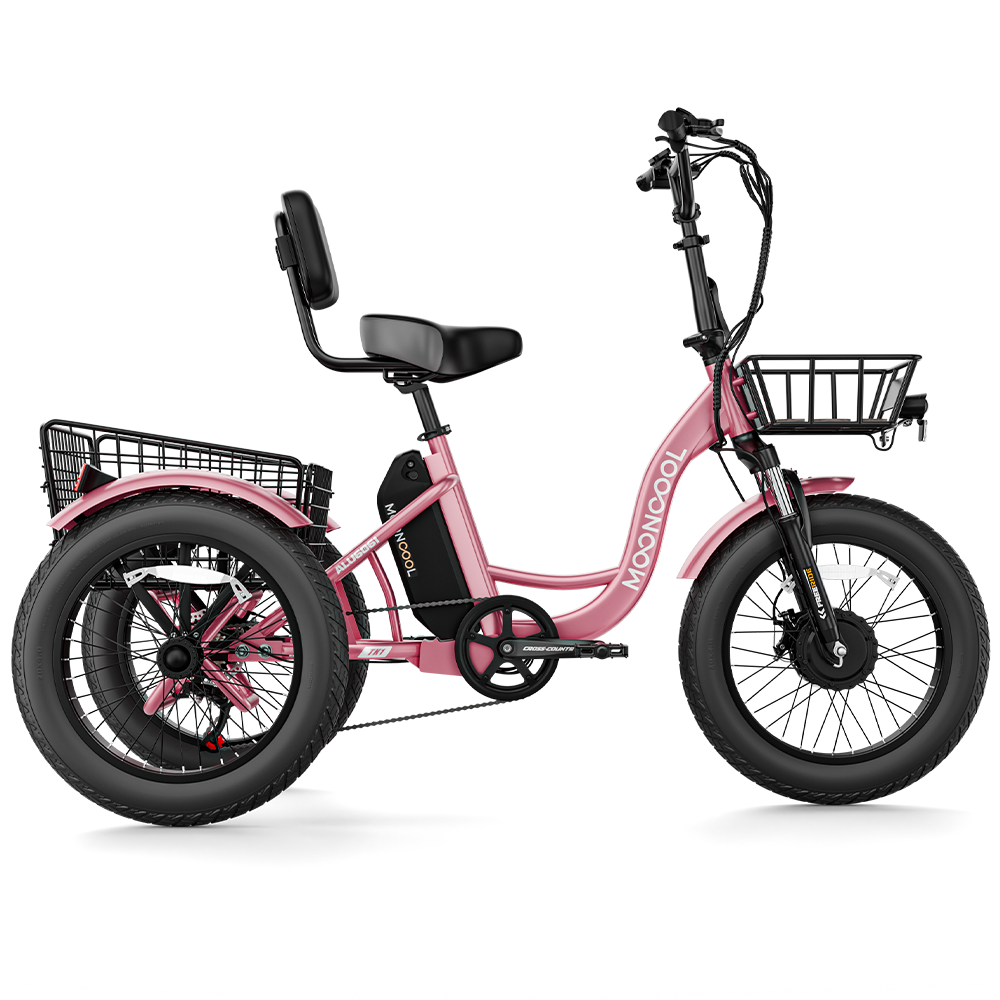

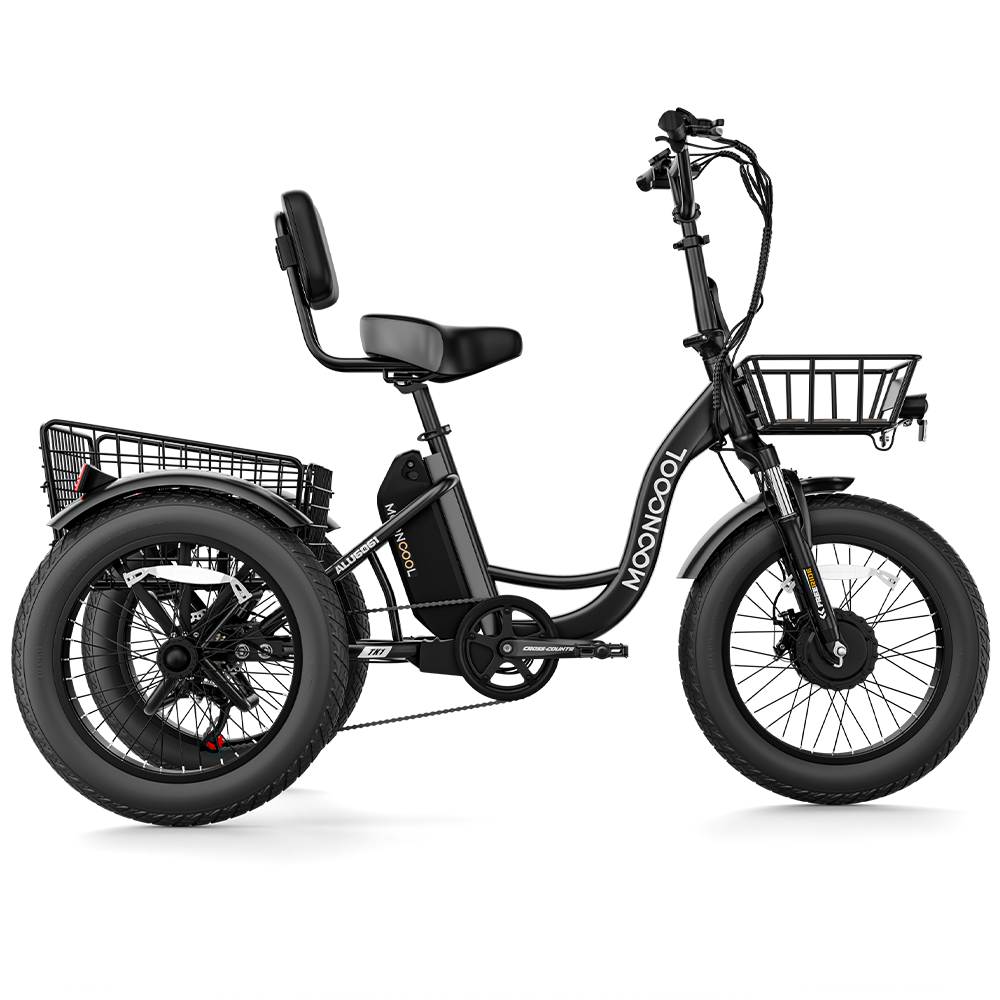

TK1 Fat Tire Electric Trike

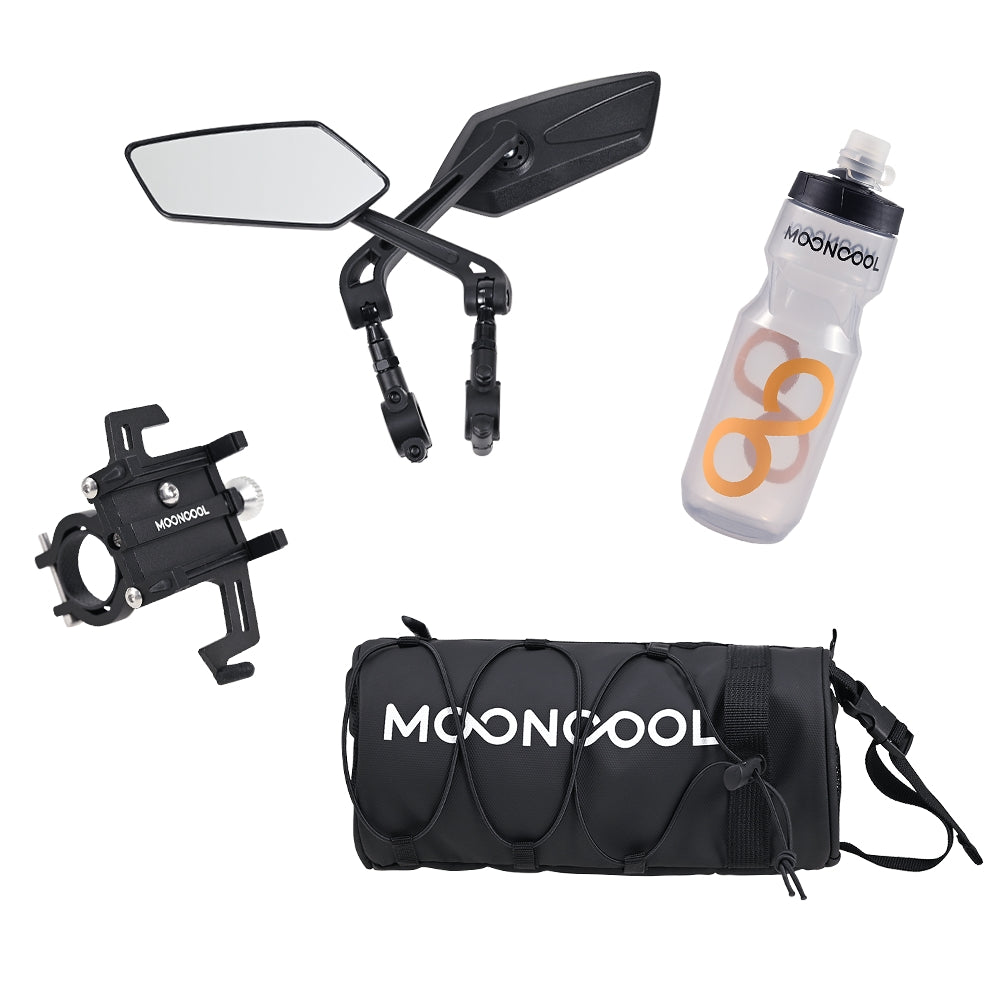

Compatible Accessories
MC Trike Set Package (NOT FOR SALE / NON-DELIVERY)
Free
$0.00
MC Mirrors (Pair) (FREE)
Free
$0.00
Show More
save
CA$0.00
Size & Fit
Size & Fit
| ★ | Recommended Height | 5'~6'3" |
| A | Top Tube Horizontal | 22.44 in |
| B | Wheelbase | 47.2 in |
| C | Stand Over Height | 16.7 in |
| D | Handlebar Length | 26.6 in |
| E | Total Length | 67.7 in |
| F | Total Width | 31.5 in |
| G | Seat Height Min/Max | 31~39 in |
| H | Handlebar Height Min/Max | 46~49 in |
| I | Front Basket | 13.78*11.02*5.12 in |
| J | Rear Basket | 19.29*20.08*11.42 in |
| K | Wheel Size | 20 in |
| L |
Seat Size
|
16.5*12.6 in |
Components
Components
| Weight | G.W. 116.4lbs, N.W.89.9lbs |
| Frame | 6061 Aluminum+Hiten Steel |
| Fork | Suspension, Coil Spring Structure |
| Handle Bar | Alloy ,Bmx Style, Barboe 1.25in, Length 25.98in, Rise 4.72in |
| Stem | Alloy,Barboe 1.13in x 1.25in, Folding, Extention Tube 7.1in |
| Grip | Soft PVC Rubber |
| Saddle | Comfortable Big Vacuum Foaming Seat With Backrest |
| Seat Post | Alloy ∮1.22 x 0.09t x 11.8in Length |
| Seat Post Clamp | ID1.37in, Quick Release |
|
Display
|
Multifuction YL81, LCD Colour Screen, Appears More Clearly in Sunlight, 3 Levels, Speed Limit 16MPH
|
| Shifter | Shimnano 7 Speed |
| Derailleur | Shimnano |
| Chainwheel | 1/2 × 3/32 × 44t × 6.69 inches Alloy Crank, Steel Chainring 44t |
| Chain | 1/2*3/32*132l |
| Freewheel | 1/2*3/32*14-28t |
| Pedal | Alloy Body 9/16" |
| Brake | Mechanical Disc Brake, Alloy, Rotor 6.3in |
| Brake Level | Alloy, Disc Brake With Electrical Cut-Off Fuction |
| Rim | Alloy 20inch * 4.0" * 13g * 36h, AV |
| Tire | 20" *4.0 |
| Spokes | Stainless, 13g |
| Fenders | With |
| Rear Rack | With |
| Front Basket | With |
| Rear Basket | With |
| Assembly | 65% |
| Colours | 6 Colours |
| Carton Size |
58.7 × 13.8 × 37 inches 149 x 35 x 94 cm |
| Load Capacity | 400LBS |
Specification
Specification
| Motor | 48V*500W Front Motor, 85Nm Peak Torque |
| Battery Capacity | Lithium 48V*14.5Ah |
| Battery Range | 48~72 km / 30~45 Miles |
| Charger | 100-120V 54.6V 2.0A |
| Battery Charging Time | 6-8 Hours |
| Top Speed | 15.5 mph (25 km/h) |
| Controller | Sine Wave Foc 48V20AMP Peak |
|
Pedal Sensor |
Cadence Sensor |
|
Wire Harness |
All Water Resistant |
| Throttle | Thumb Throttle |
| Front Light | LED Ebike Version with Horn Function |

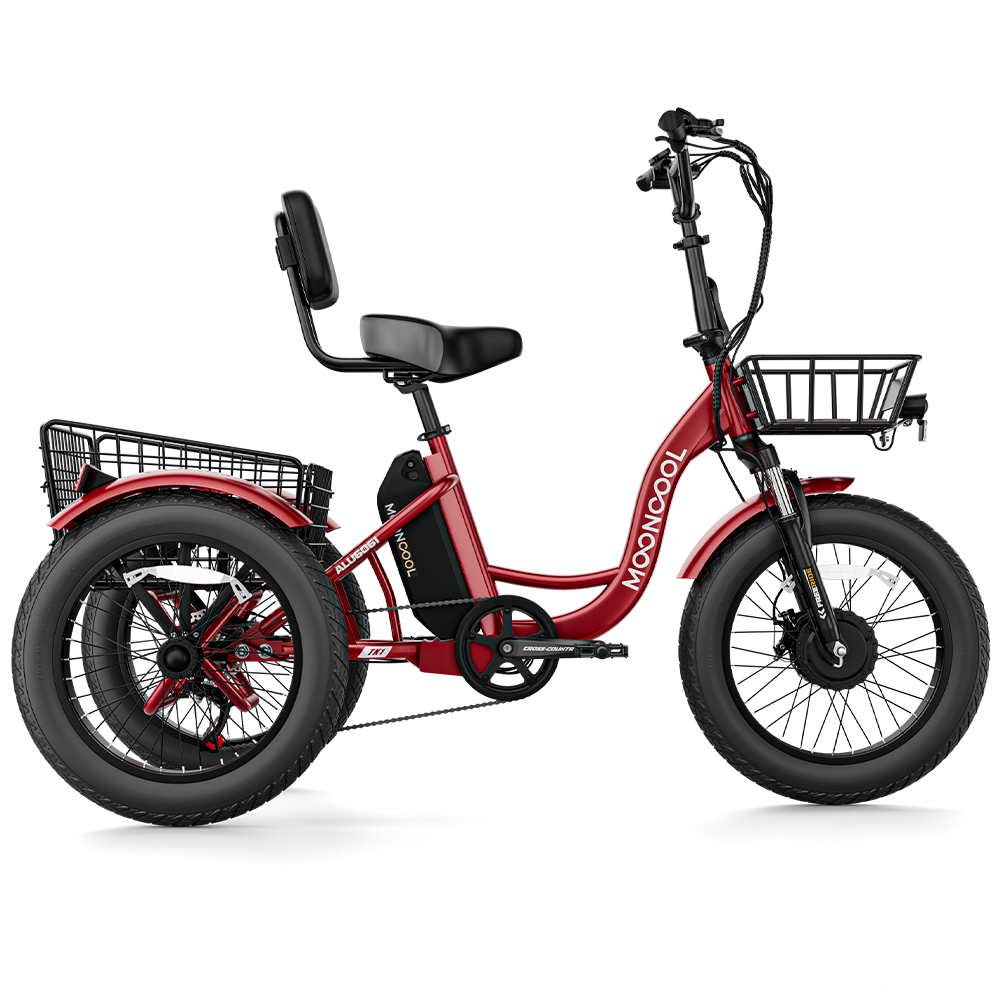

TK1 Fat Tire Electric Trike
Sale price$1,899.99 CAD
Regular price$2,399.99 CAD
Added to Your Cart!
MoonCool TK1 Fat Tire Trike Let's Check It Out
SpiderWayne
Mooncool TK1 FAT 20 Tricycle Ebike Assembly: Step-by-Step Guide
Mike Rochester
MY VERY FIRST TRIKE! THE MOONCOOL TK1 E-TRIKE!
Prepper Princess
Mooncool TK1 Fat Tire E-Trike Best
Jerry T on E-bikes
Safety
Our approach to accessibility goes beyond physical design
Comfort
And inclusivity, making sure every rider feels confident and empowered
Accessibility
It encompasses affordability, ensuring our E-Trikes are within reach

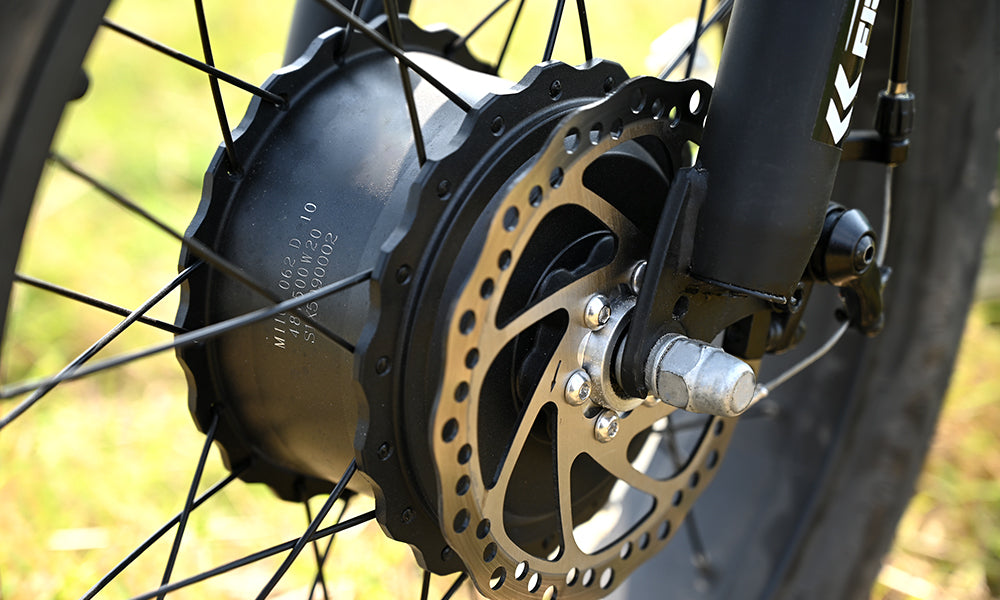

Front Drive Motor
Rated at 500W, the motor delivers a high torque of 85Nm, ensuring effortless hill climbing and a fast, smooth ride.

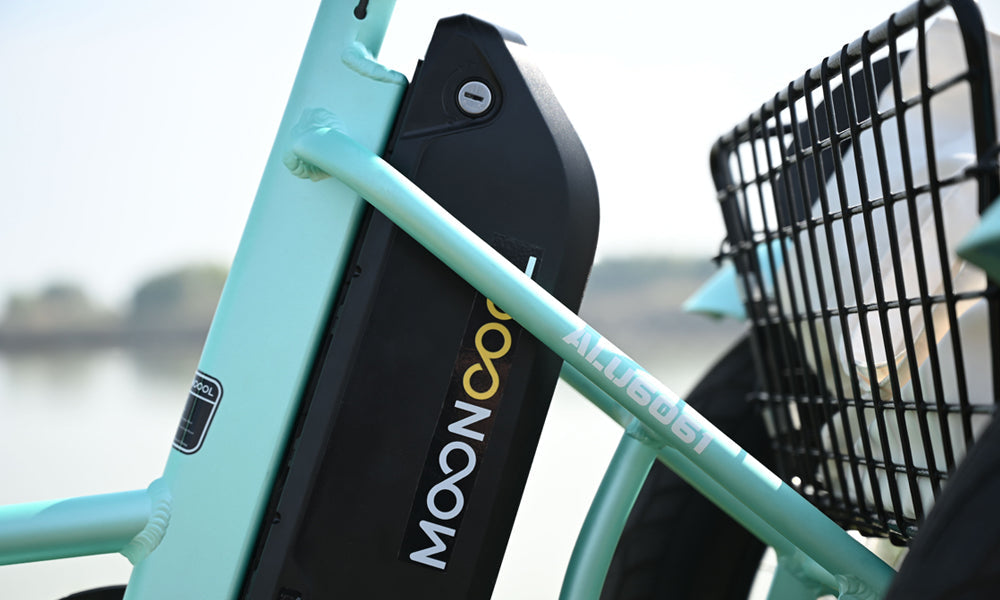

Battery Power
With a 48V*14.5Ah lithium battery, it allows for extended rides with a range of 48~72 km. Requiring a charging time of 6-8 hours, the battery ensures reliable, sustained power.

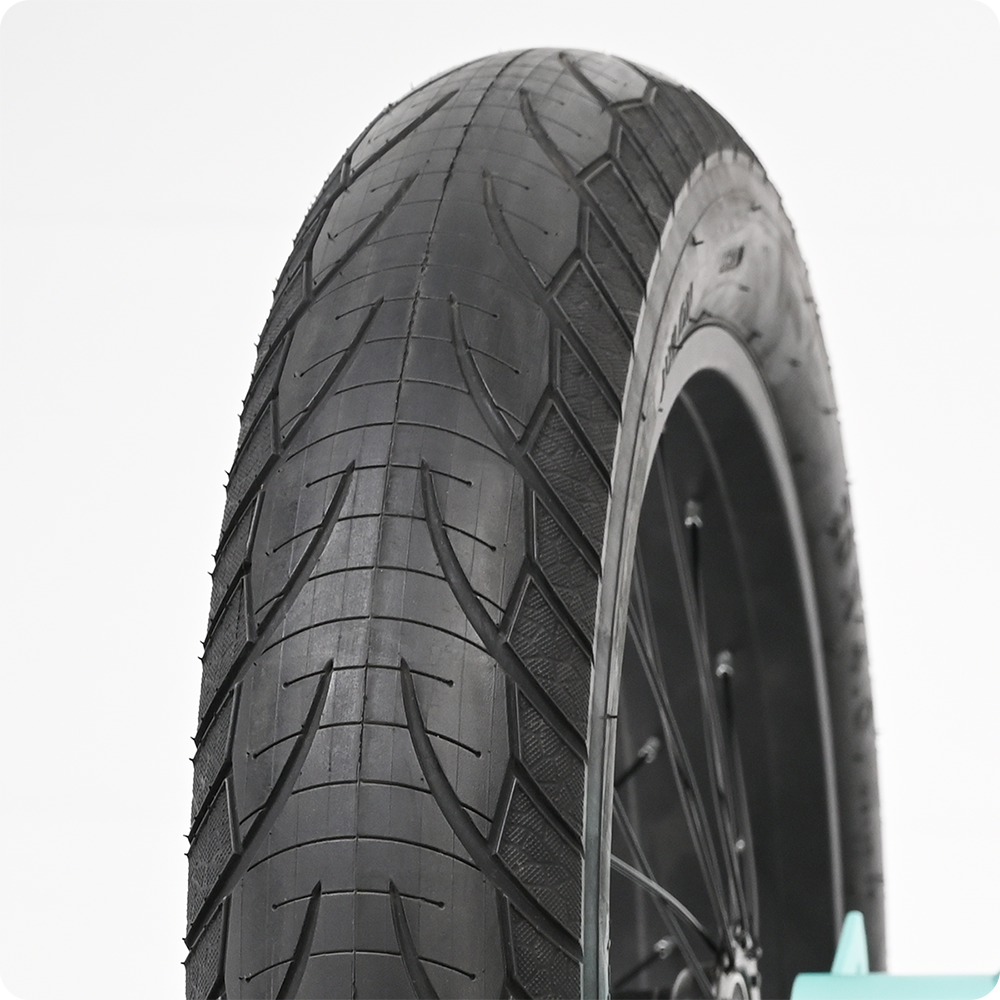

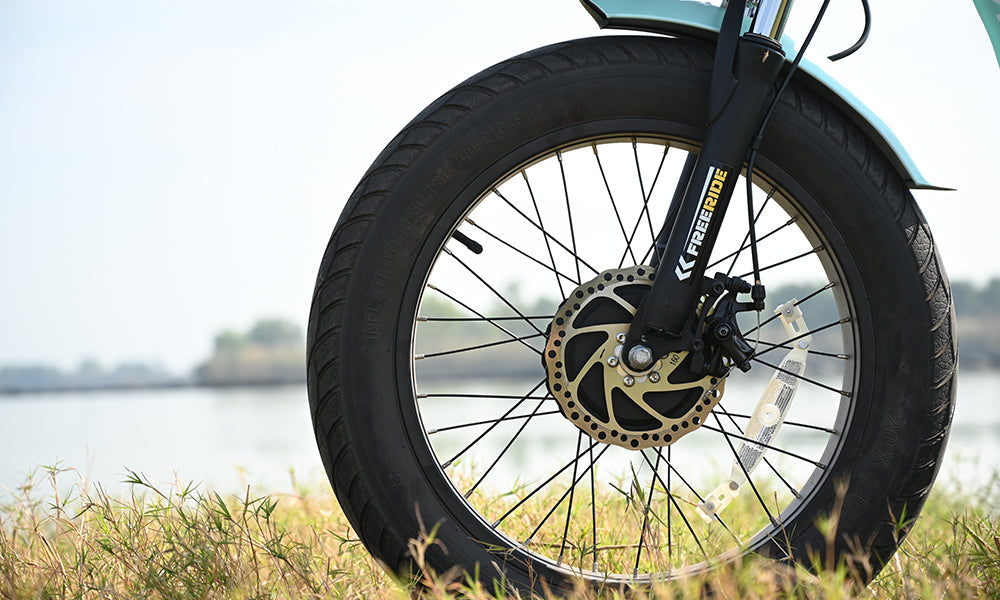

20" x 4.0 Fat Tires
Sporting 20" x 4.0 fat tires, the etrike promises safety, stability, and versatility across almost all terrains.
Suitable for almost all terrains

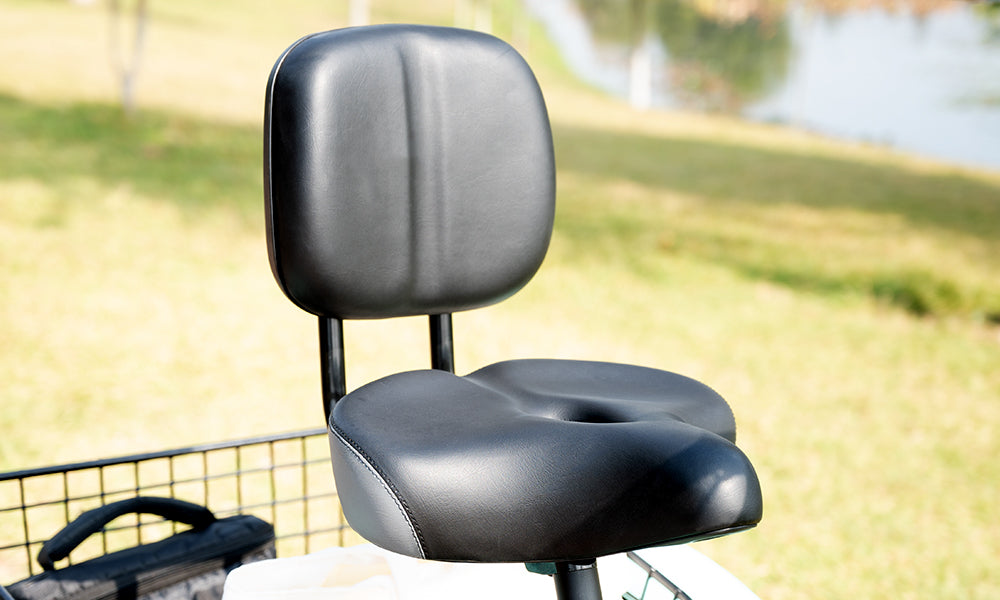

Vacuum Foam Seat
It includes a large, vacuum-foamed seat with a backrest, ensuring ride comfort and support, enhancing the overall ride quality.

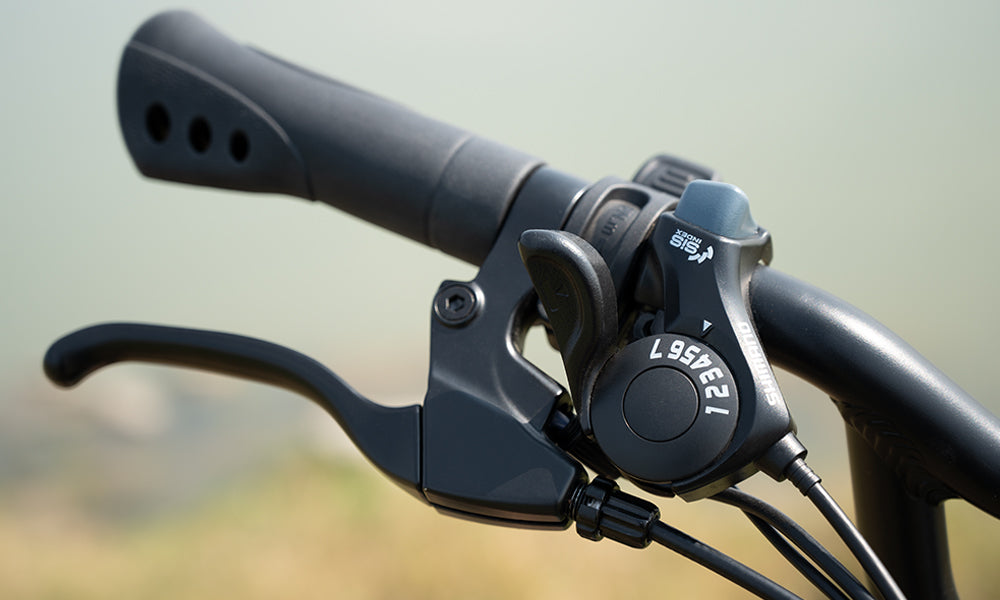

Shimano 7 Speed
Equipped with a Shimano 7-speed gear system, the etrike ensures flexible and smooth speed control.

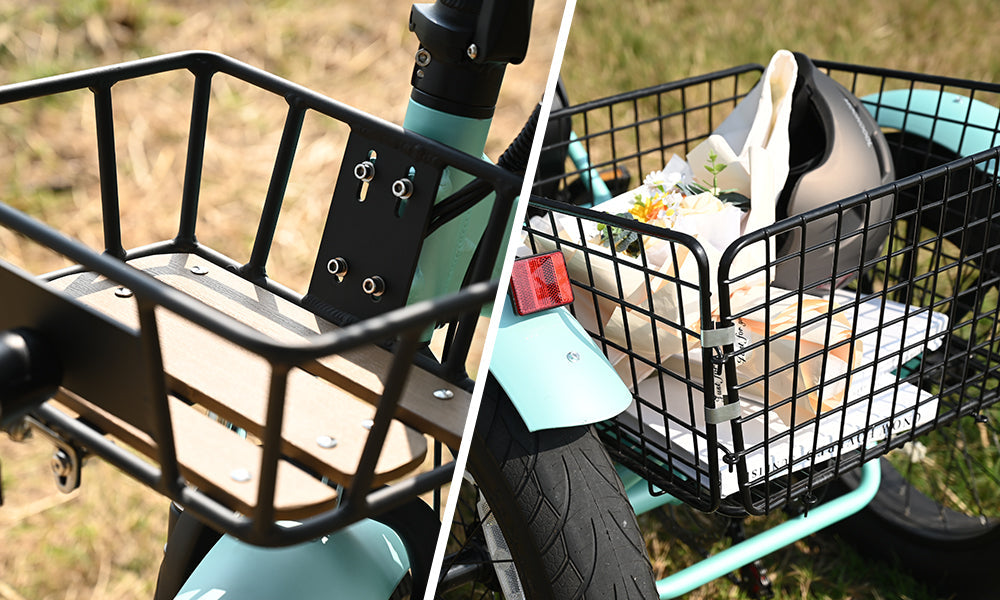

Large Front & Rear Baskets
With spacious front & rear baskets, it provides ample room for personal items or larger cargo, adding a level of convenience and practicality to your rides.
Your reliable travel buddy
Assembly Video
Our assembly videos will walk you through assembly
FAQs
How assembled is the trike when it's delivered, and is it easy to finish the assembly myself?
The trike arrives 65% pre-assembled for your convenience. The remaining assembly is straightforward and can be completed with just a bit of DIY — no need to be a professional. You'll be ready to ride in no time!
Is the trike suitable for seniors or individuals with disabilities?
Yes, indeed. Our trike is designed with ease of use and stability in mind, making it a great choice for older adults and persons with disabilities who are looking for a safe and comfortable riding experience.
Does the electric trike come with a battery and both front and rear baskets included?
Yes, it does. The trike comes equipped with a battery, and we include both a front and a rear basket as standard features, so you have everything you need to get started right away.
What's the recommended height for someone riding the TK1 Fat Tire?
The TK1 Fat Tire is designed for riders who are between 5'-6'3" tall for optimal comfort and performance.
