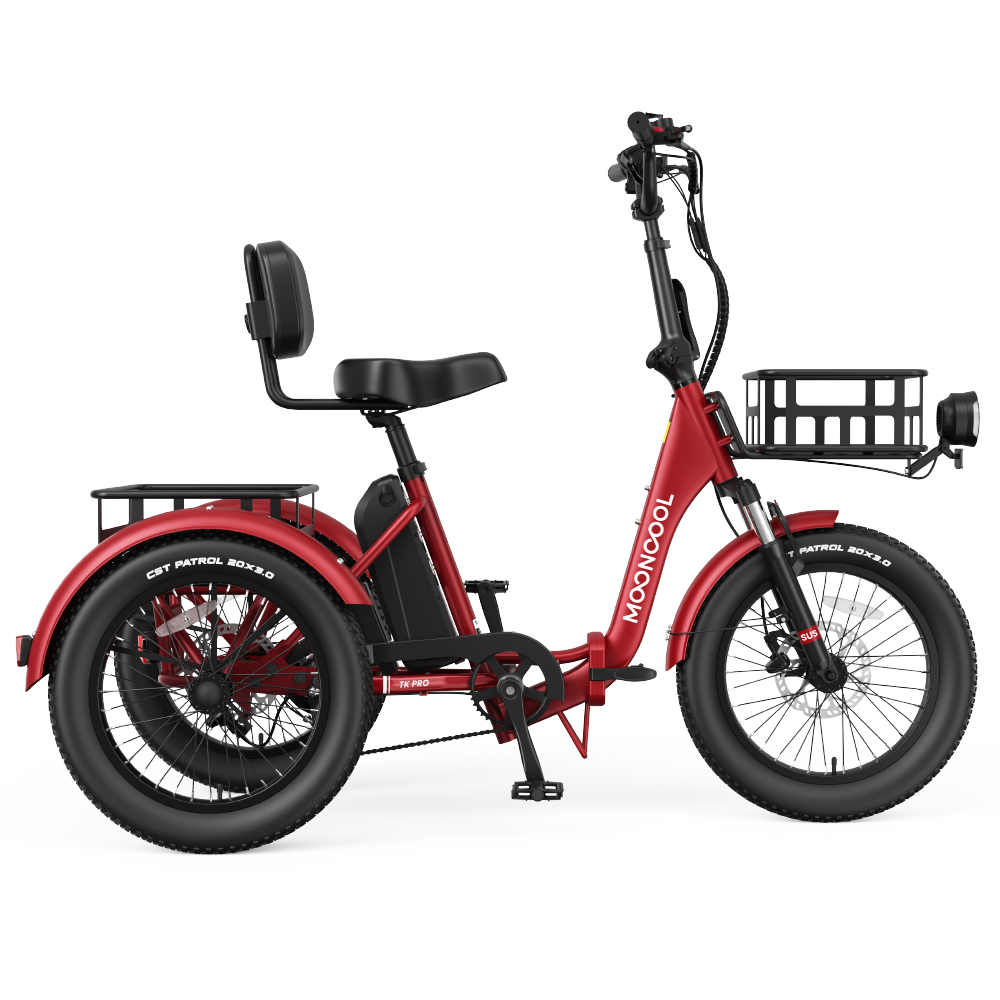

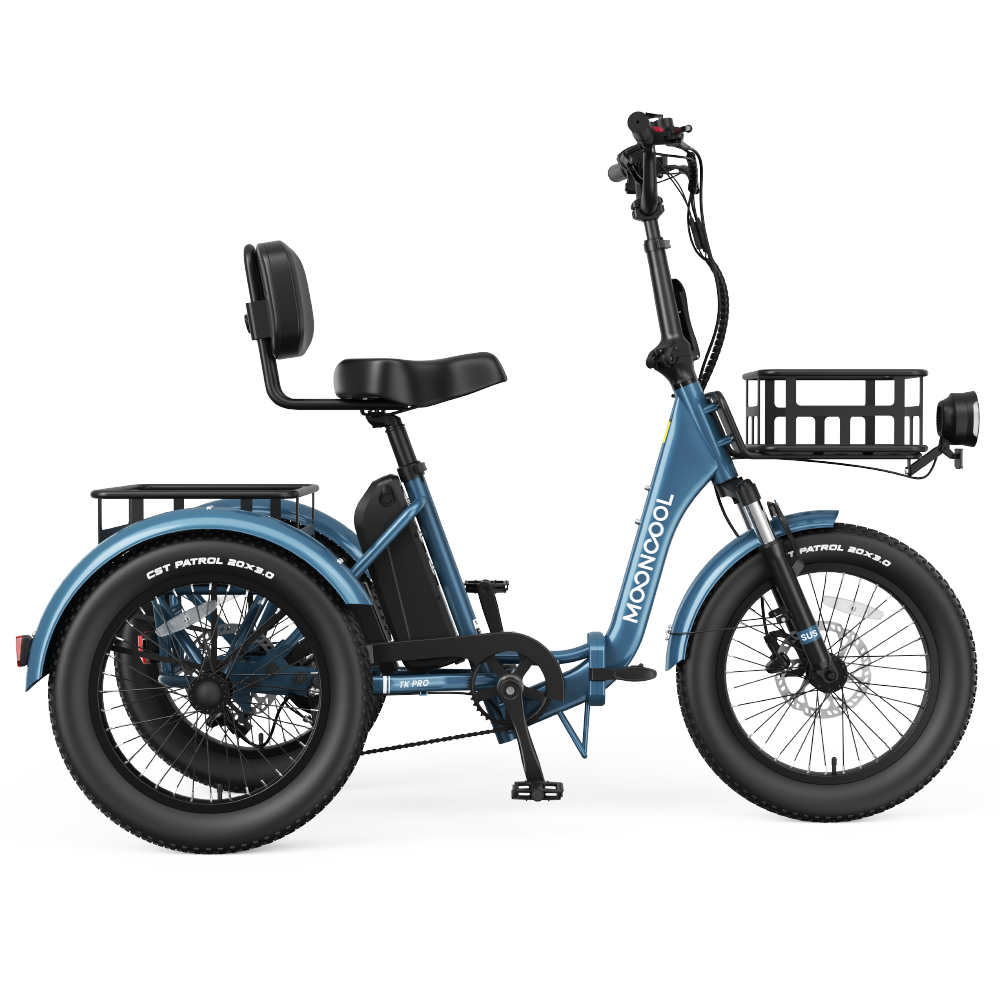

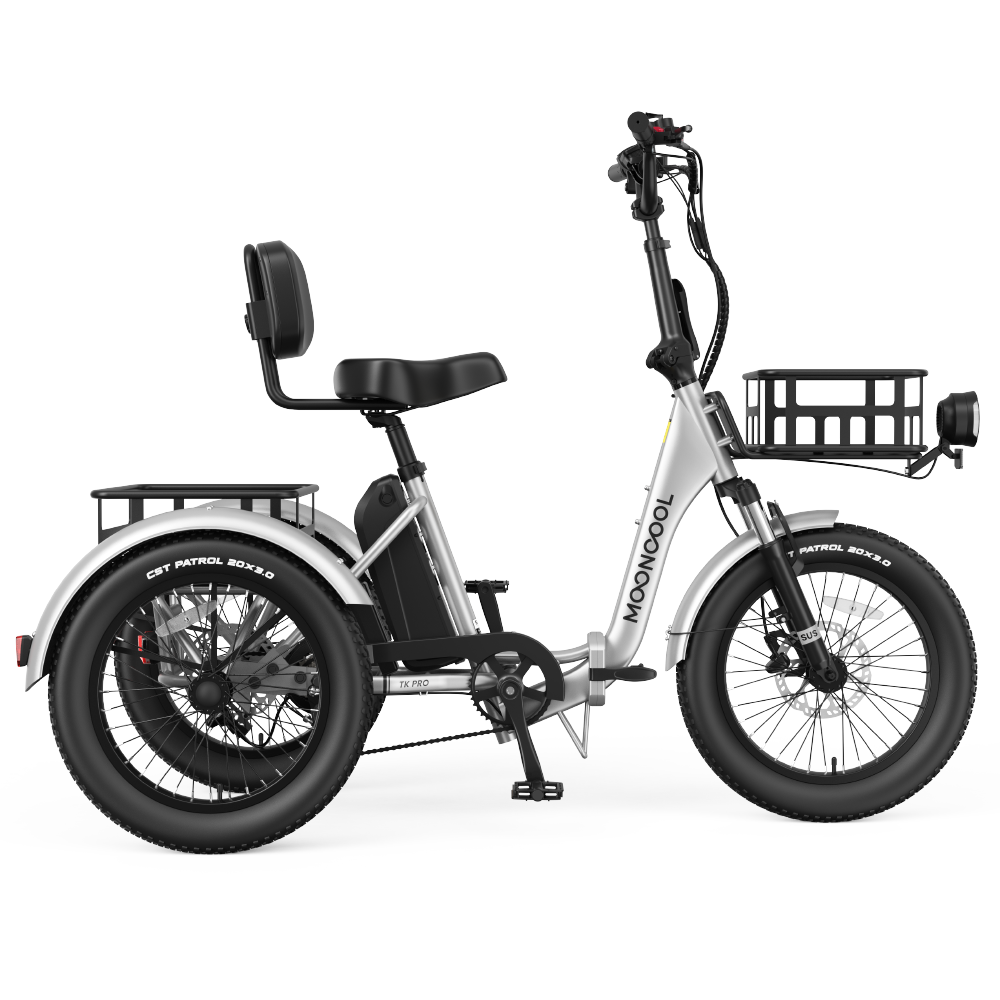

TK Pro Electric Trike
Certified UL 2849Size & Fit
| ★ | Folded Size |
39.9(L) x 29.9(W) x 30.7(H) in 101.5(L) x 76(W) x 78(H) cm |
| ★ | Recommended Height | 5'~6'3" |
| A | Top Tube Horizontal | 20.9 in / 53 cm |
| B | Wheelbase | 44.1 in / 112 cm |
| C | Stand Over Height | 12.2 in / 31 cm |
| D | Handle Bar Length | 27.2 in / 69 cm |
| E | Total Length | 65 in / 165 cm |
| F | Total Width | 28.4 in / 72 cm |
| G | Seat Height Min / Max |
30.3~42.1 in 77~107 cm |
| H | Handle Bar Height Min / Max |
44.1~46.1 in 112~117 cm |
| I | Front Basket |
12.6 x 11.8 x 5.5 in 32 x 30 x 14 cm |
| J | Rear Basket |
18.9 x 14.2 x 6.3 in 48 x 36 x 16 cm |
| K | Wheel Size | 20" x 3.0 |
| L | Seat Size |
12.6 x 11.8 in 32 x 30 cm |
Components
| Weight |
G.W. 112.4 lbs, N.W. 90.4 lbs
G.W. 50.96 kg, N.W. 41.00 kg
|
| Frame | 6061 Aluminium, Hydroformed Tubes |

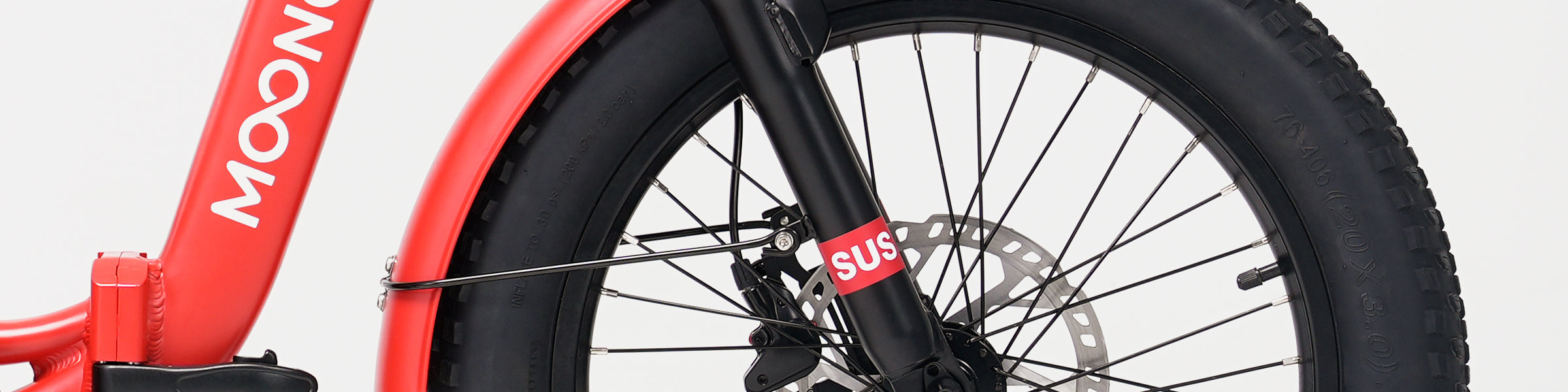

| Fork | Shock Absorber Front Fork |
| Handle Bar | W: 660 * H: 120 * φ22.2 * 2.6T, φ31.8 |
| Stem | Adjustable 0-80d, L: 10.354 in |
| Grip | Soft PVC Rubber |

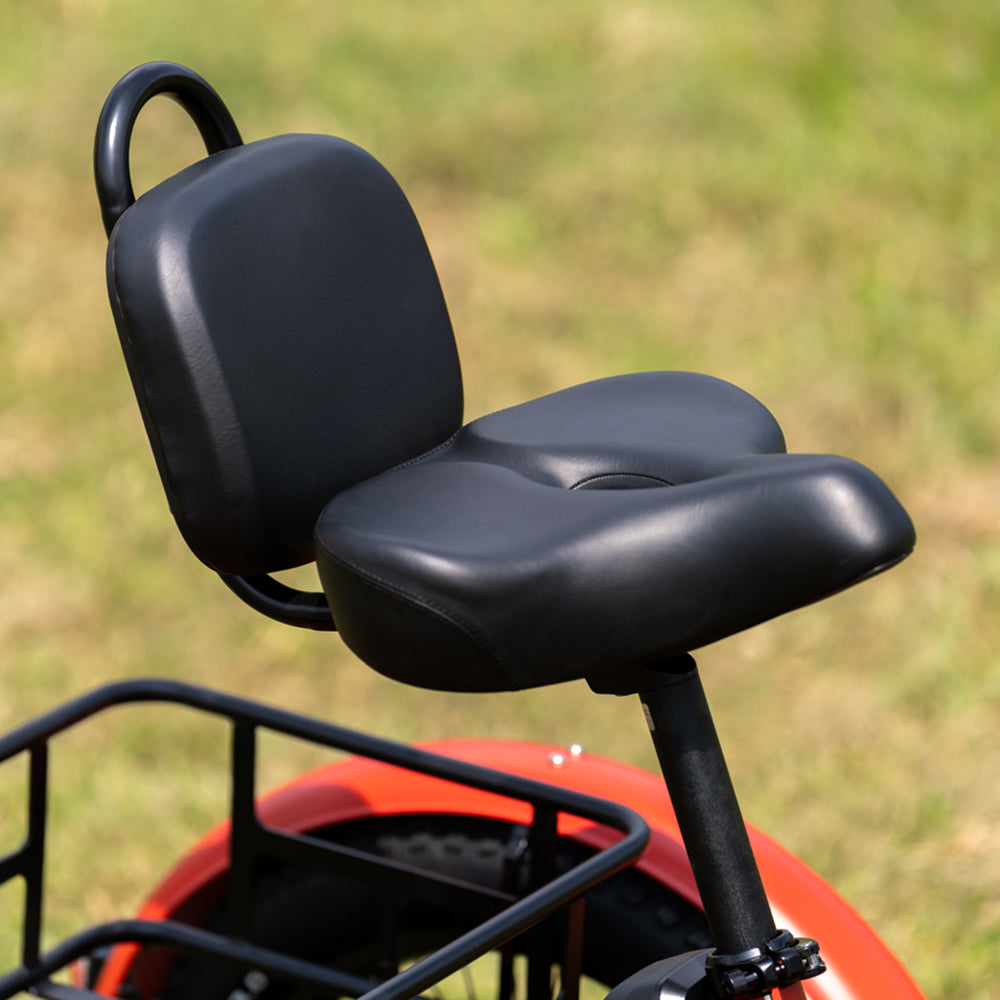

| Saddle | Seat with Backrest, Comfortable Large Vacuum-Foamed Seat |
| Seat Post | 6061-T6 Aluminium, φ1.25in x 21.65in Length |
| Seat Post Clamp | D40*25, Quick Release |
| Shifter | 6-Speed |
| Derailleur | Shimano |
| Chainwheel | 6.5in Alloy Crank, 38T Steel Chainring |
| Chain | KMC Z7 |
| Freewheel |
6S, 14-16-18-21-24-28T, Special Purpose for E-bike
|
| Pedal | Alloy Body, 9/16-inch |
|

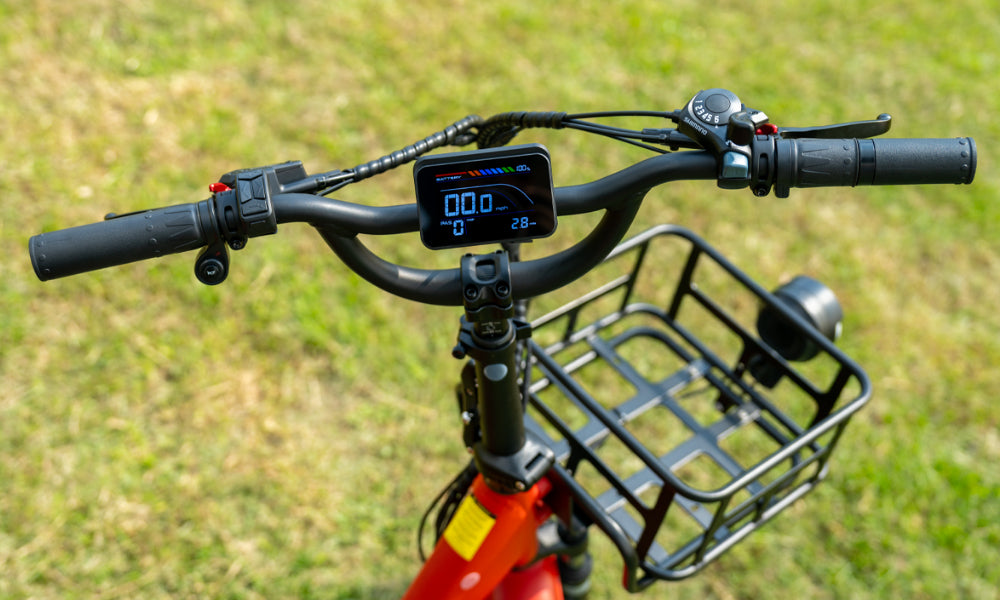

Display
|

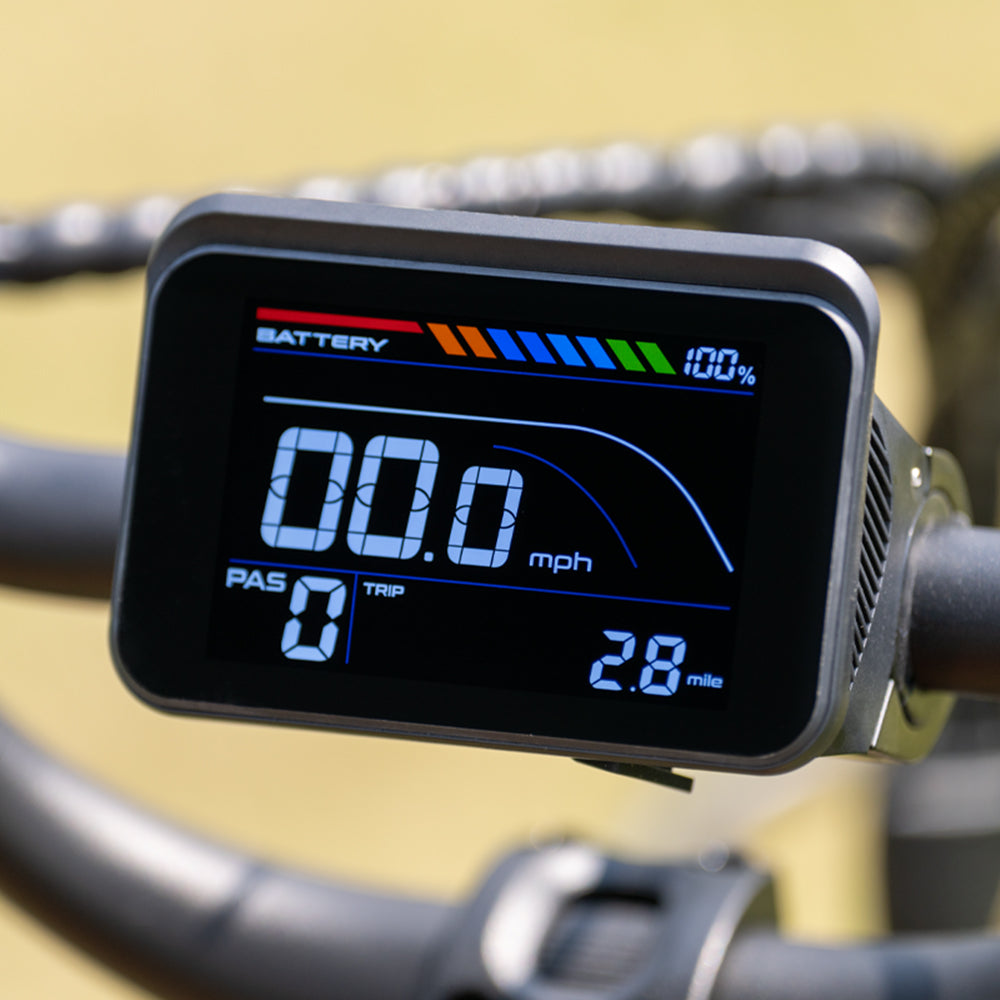

Intelligent Digital LCD Display Appears More Clearly in Sunlight, Color
|

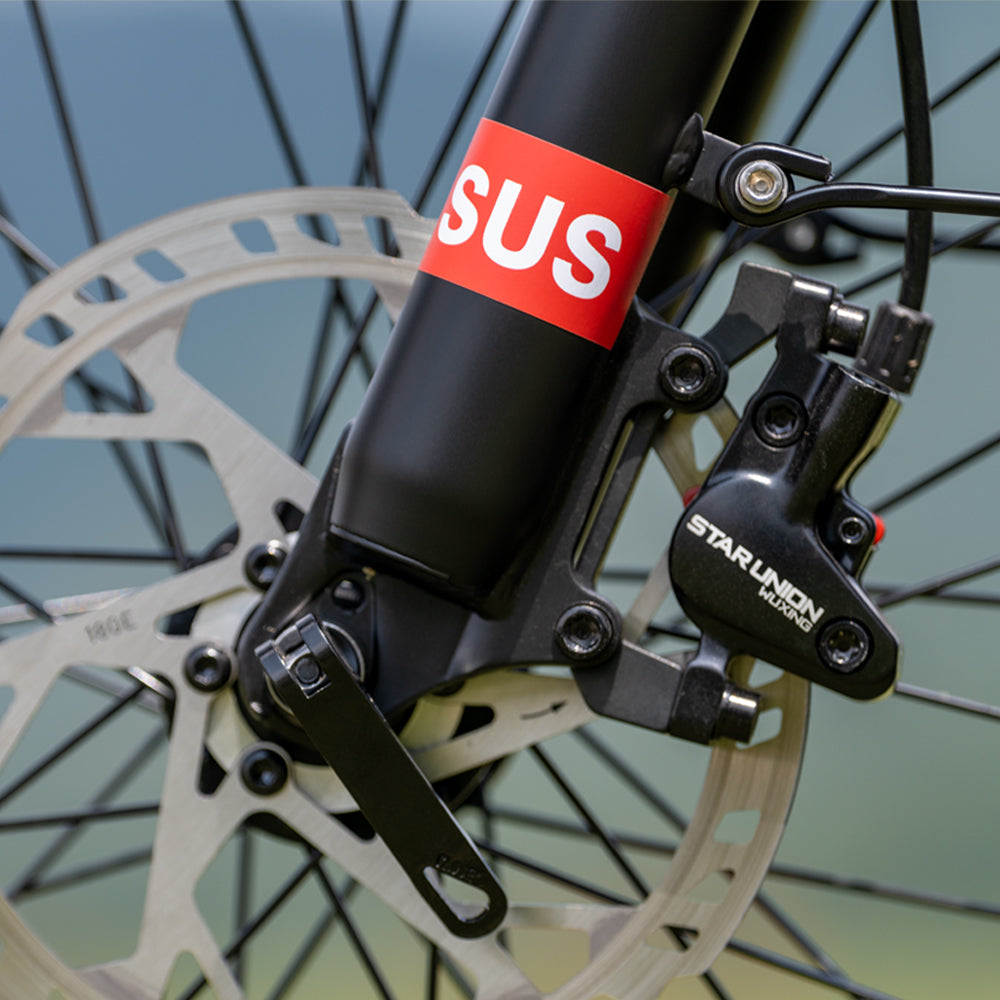

| Brake | STARUNION Hydraulic Disc Brake, Alloy, 180mm Rotor |
| Brake Level | STARUNION Alloy 3-Finger Hydraulic Disc Brake with Electrical Cut-Off Function |
| Rim | 20-inch Alloy Rim, 3.0" Width, 13G Spokes, 36 Holes, AV |
| Tyre | 20" x 3.0 Tire, CST, 60TPI |
| Spokes | 304 Stainless Steel, 13G |
| Parking Brake | With |
| Fenders | With |
| Rear Rack | With |
| Front Basket | With |
| Rear Basket | With |
| Assembly | 95% |
| Colours | 6 Colours |
| Carton Size |
39.8 x 29.9 x 30.3 inches 1010 x 760 x 770mm |
| Load Capacity |
450LBS
|
Specification
| Motor | 48V*500W |
| Battery | 48V*20Ah |
| Range |
72-120 km / 45-75 Miles
|
| Charger | 110-240V 54.6V 3A |
| Charging Time | 7 Hours |
| Max Safe Speed | 25 km/h (15.5 mph) |
| Controller | Sine Wave FOC 48V 24amp Peak |
| Sensor | Upgraded Torque Sensor |
| Throttle | Half Twist Throttle |
| Wire Harness | All Water-Resistant |
| Front Light | Starunion LED, Horn Function, CPSP Reflector |
| Rear Light | Starunion LED, Brake Highlight Function, Turn Signals Function |
Safety
Our approach to accessibility goes beyond physical design
Comfort
And inclusivity, making sure every rider feels confident and empowered
Accessibility
It encompasses affordability, ensuring our E-Trikes are within reach

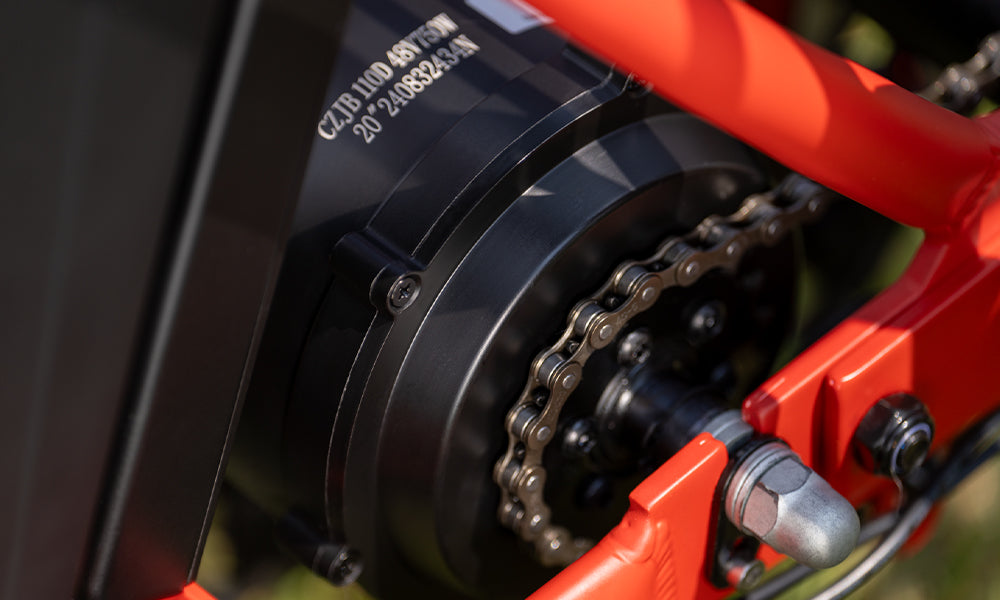

Rear Drive Motor
Equipped with a 500W rear-drive motor delivering up to 85Nm of peak torque, it offers strong and reliable performance, easily handling a variety of terrains and travel needs.

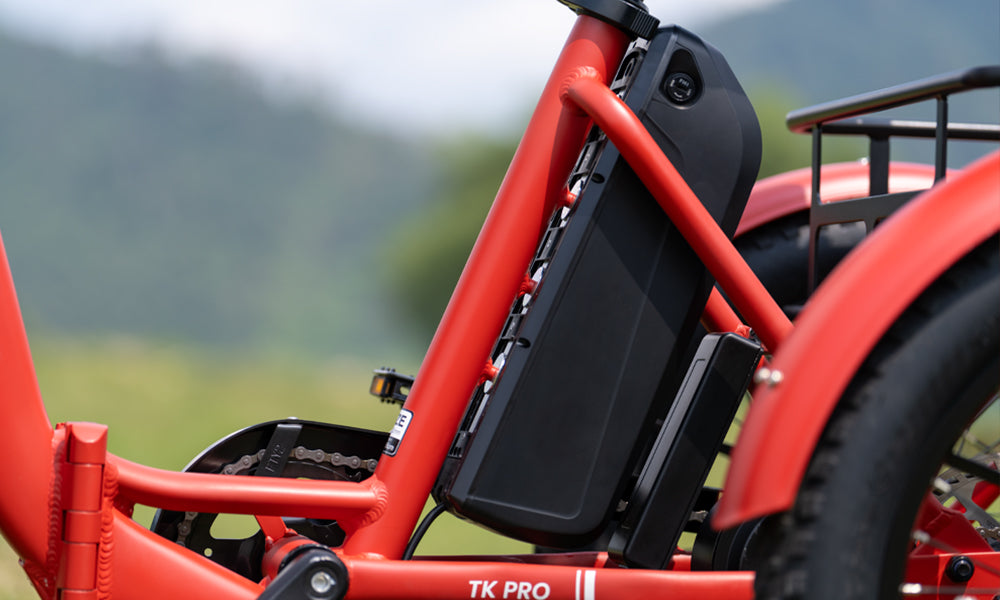

Battery Power
Equipped with a removable 48V 20Ah lithium battery, it delivers a range of 72 to 120 km on a single charge. Explore with confidence, without worrying about battery life.
Torque Sensor
The torque sensor detects the rider’s pedalling force, providing responsive and efficient assistance for a more natural riding experience, making it a better choice than cadence sensors.

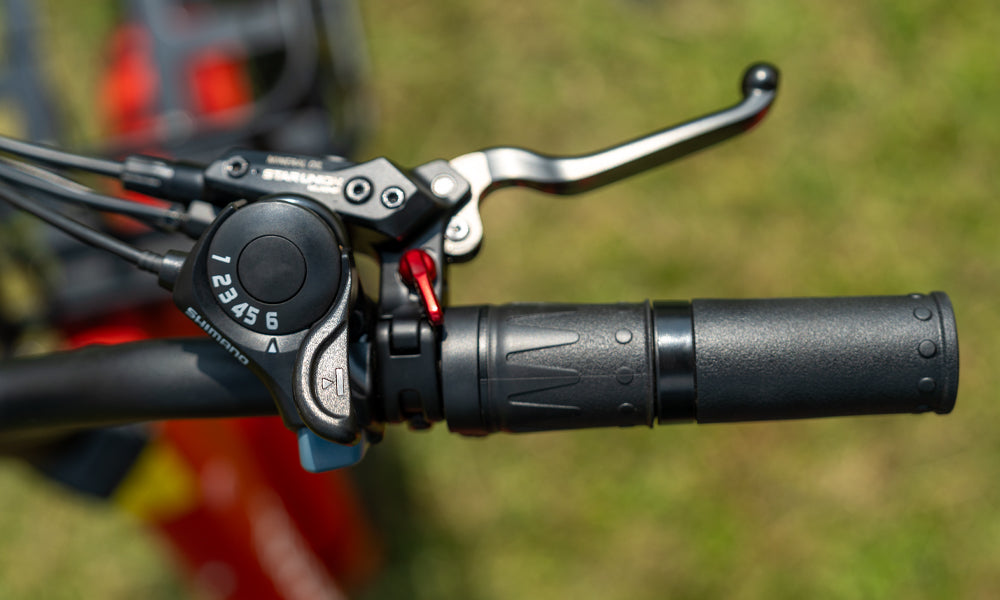

Shimano 6 Speed
The Shimano 6-speed gear system allows riders to choose the appropriate gear for their speed and terrain, enhancing performance and making rides more enjoyable and efficient.
More Comfort, Less Worry

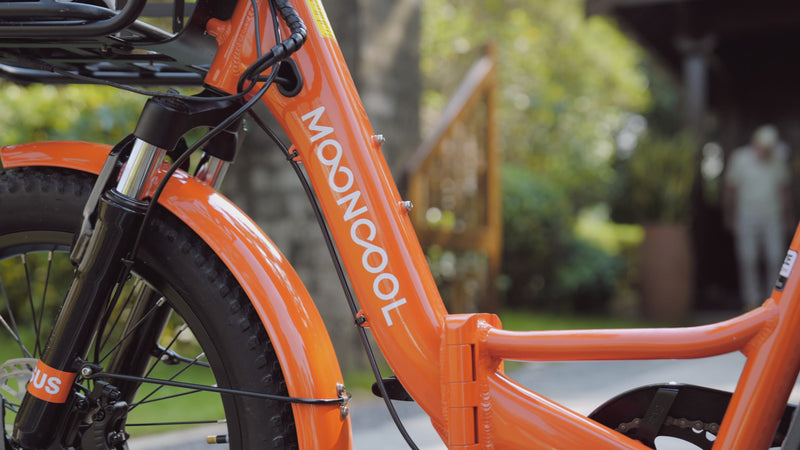

Low-Step Frame
The 12.2-inch low step-over height makes it easier to get on and off the bike, reduces the risk of tripping, and ensures a safe, smooth ride for riders of all abilities.
Cruise Control
The newly added cruise control ensures a smoother ride by maintaining a set speed, eliminating the need for constant throttle or pedal adjustments. Press and hold the minus button to activate. To deactivate, simply twist the throttle or pull the brake lever.
Speed Differential Mechanism
Adjusting the wheel speed difference enhances handling and stability, allowing for smoother turns and significantly improving riding safety.
Turn Signals & Horn Function
Equipped with turn signals and a horn, it improves visibility and safety, helping riders navigate urban environments with greater confidence.
Comfort and Care in Every Ride
Assembly Video
Our assembly videos will walk you through assembly
FAQs
What are the dimensions of the TK Pro when it's folded?
When folded, the TK Pro Electric Trike measures 101.5 × 76 × 78 cm (39.9 × 29.9 × 30.7 inches), making it compact for storage and easy to transport.
Is the trike suitable for seniors or individuals with disabilities?
Yes, indeed. Our trike is designed with ease of use and stability in mind, making it a great choice for older adults and persons with disabilities who are looking for a safe and comfortable riding experience.
Does the electric trike come with a battery and both front and rear baskets included?
Yes, it does. The trike comes equipped with a battery, and we include both a front and a rear basket as standard features, so you have everything you need to get started right away.
