Lectric XP Trike Versus Mooncool TK1 eTrike: Which eBike Is Better?
E-Bike Reviews
Pre-assembled
95%
Range
56~113 KM
Top Speed
25 km/h
Load Capacity
450 LBS
Motor
500W
Battery
48V*14.5Ah

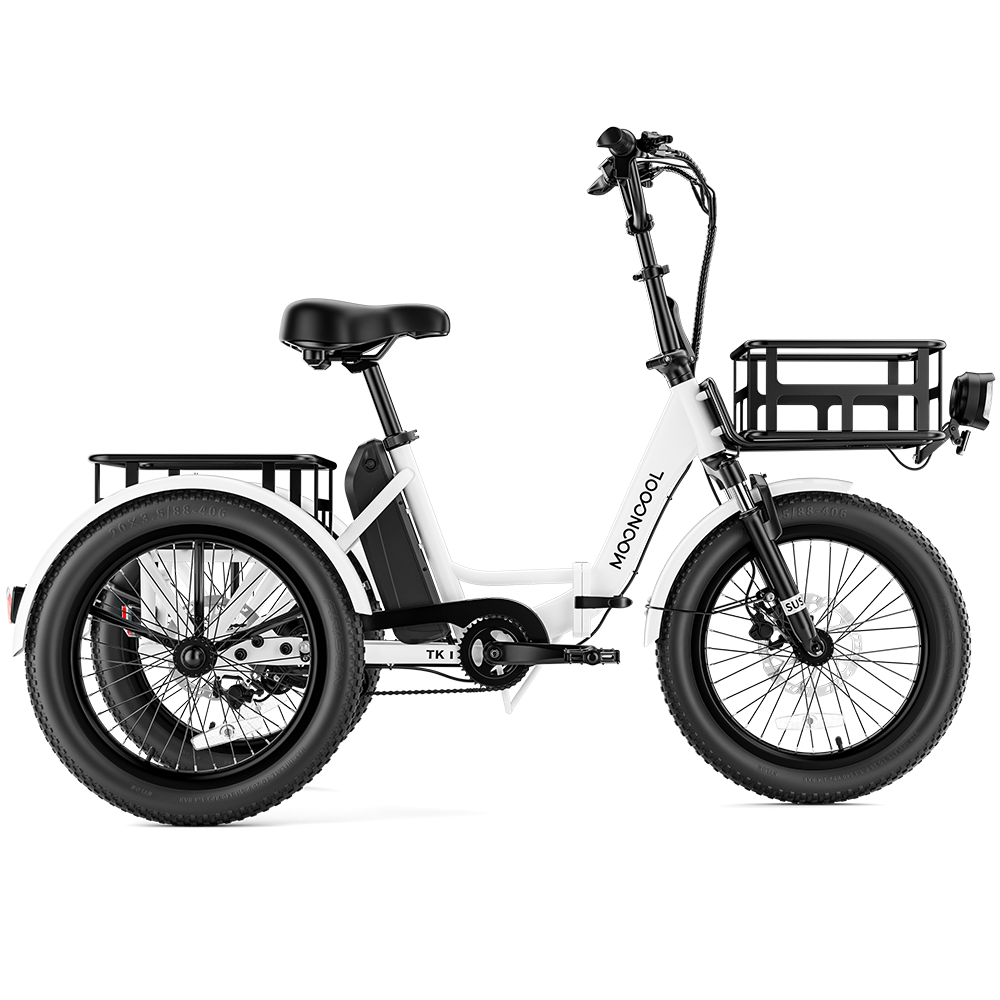

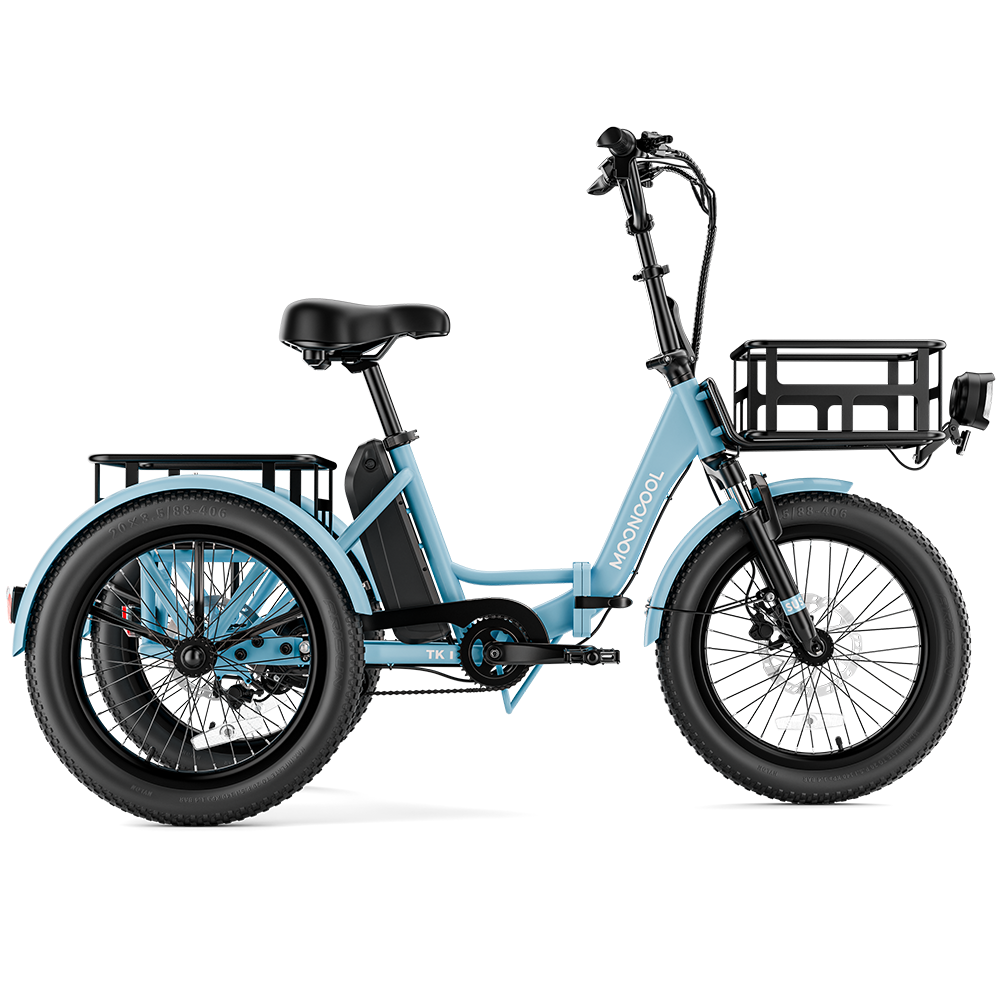

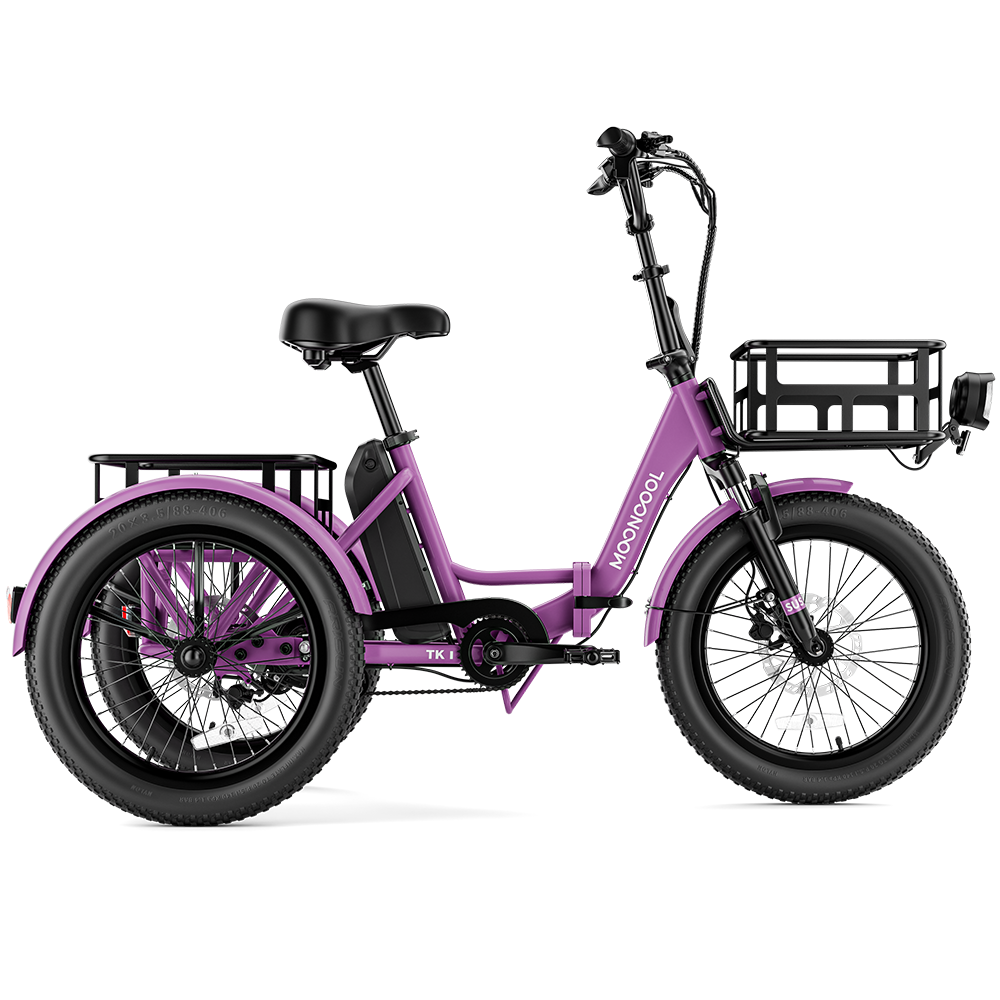

TK1 Folding Electric Trike

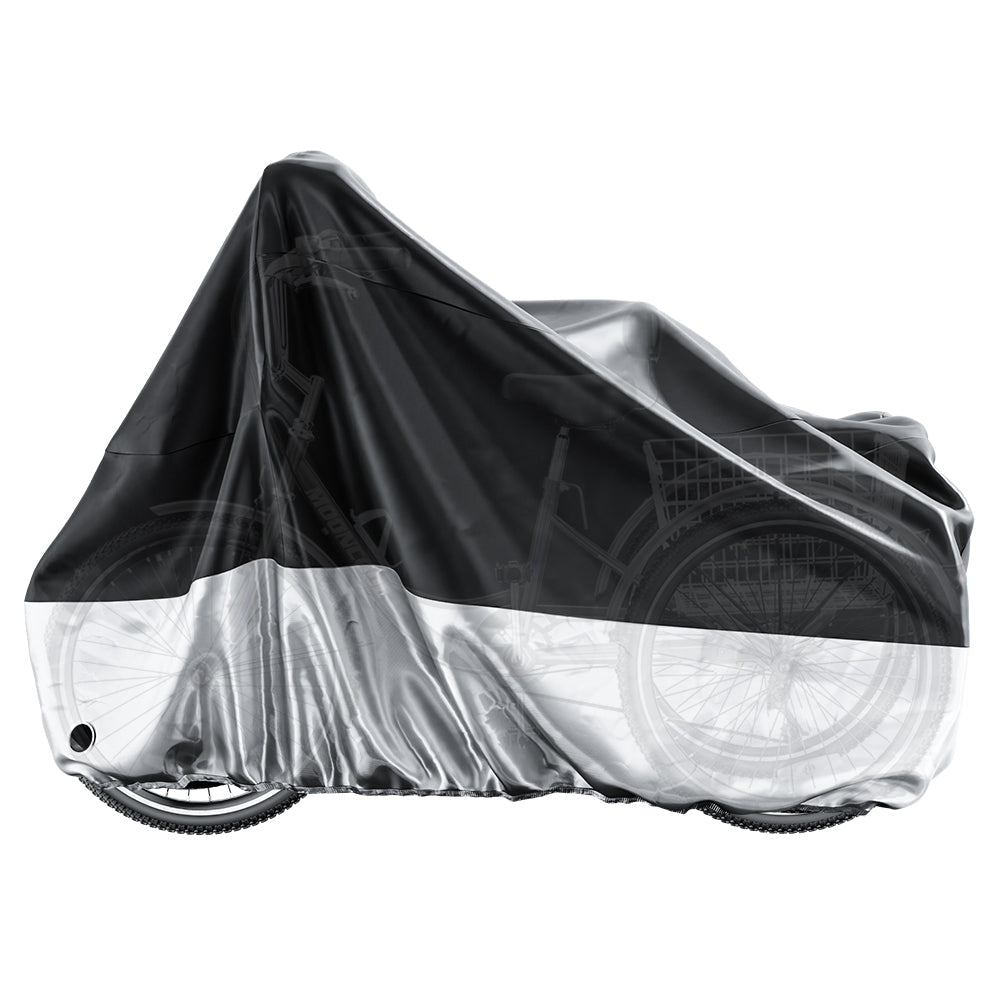

30% Off Compatible Accessories
30% Off Accessories Cannot Be Combined With Other Discounts.

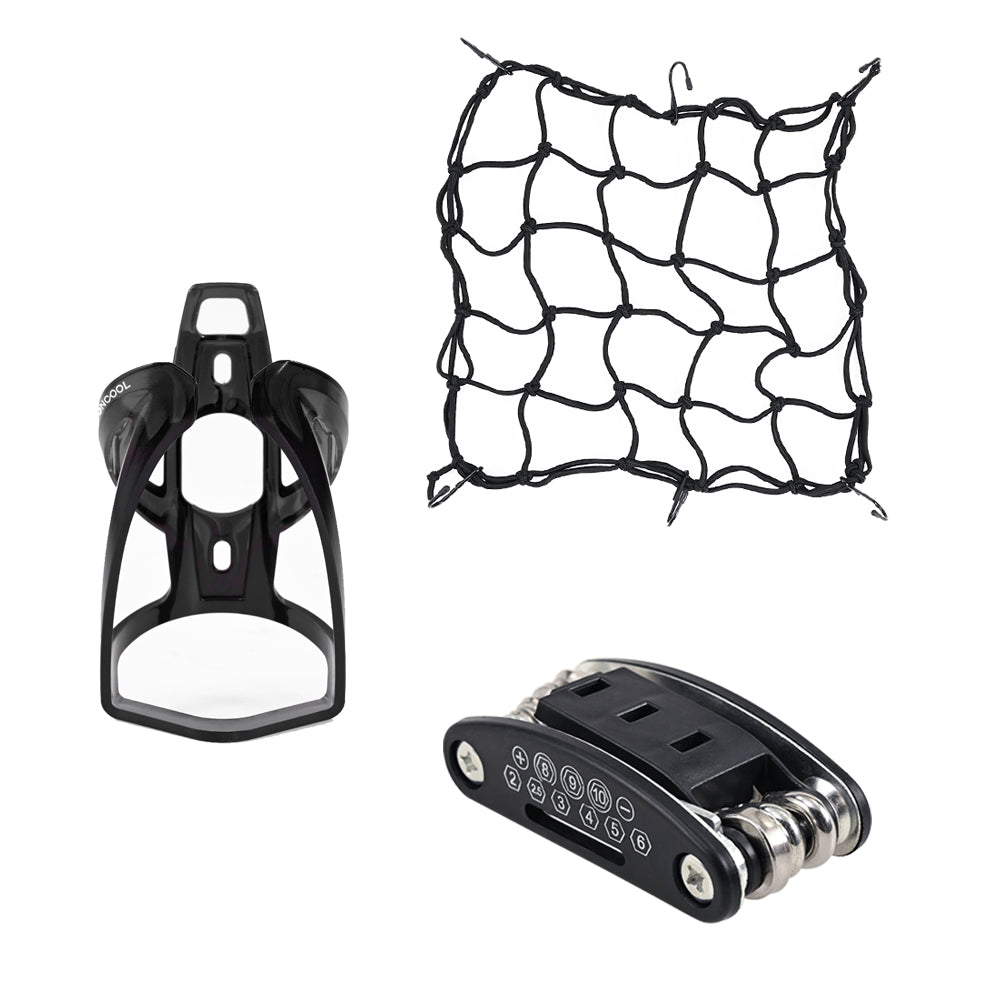

MC Trike Set Package (NOT FOR SALE / NON-DELIVERY)
Free
$0.00
Type:
Black Silver
Black Silver
Black Orange
Full Black
$42.00
$59.99
Show More
save
CA$0.00
Certified UL 2849Size & Fit
Size & Fit
| ★ | Folded Size |
39.4(L) * 30.3(W) * 29.5(H) in 100(L) * 77(W) * 75(H) cm |
| ★ | Recommended Height | 5'-6'3" / 153-190 cm |
| A | Top Tube Horizontal | 22 in / 558 mm |
| B | Wheelbase | 36 in / 913 mm |
| C | Stand Over Height | 16 in / 407 mm |
| D | Handle Bar Length | 26 in / 660 mm |
| E | Total Length | 66 in / 1670 mm |
| F | Total Width | 29 in / 730 mm |
| G | Seat Height Min / Max |
30.3~39 in 770~990 mm |
| H | Handle Bar Height Min / Max |
43.7~45.7 in 1110~1160 mm |
| I | Front Basket |
12.6 * 11.8 * 5.7 in 320 * 300 * 145 mm |
| J | Rear Basket |
18.9 * 14.2 * 6.3 in 480 * 360 * 160 mm |
| K | Wheel Size | 20 in / 50.8 cm |
| L | Seat Size |
11.8 * 10.6 in 30cm * 27 cm |
Components
Components
| Weight |
G.W. 115.7lbs, N.W. 89.9lbs G.W. 52.5 kg, N.W. 40.8 kg |
| Frame | 6061 Aluminum+Hiten Steel, Folding Structure, Rear Differential Mechanism |
| Fork | Suspension, Coil Spring Structure, Mechanical Lockout |
| Handle Bar | Alloy, BMX Style, Barboe 1.25in, Length 25.98in, Rise 4.72in |
| Stem | Alloy, Barboe 1.13in x 1.25in, Folding, Extension Tube 7in |
| Saddle | Comfortable Big Vacuum Foaming Seat |
| Seat Post | Alloy 1.25in x 19.69in Length |
| Chainwheel | Alloy Crank 6.69in, Steel Chain Ring 36T |
| Freewheel | 18T |
|
Display
|
Multifuctional G51, LCD Gray Screen
|
| Brake | Hydraulic Disc Brake, Alloy, Rotor 7.09in |
| Brake Level | Alloy 3 Fingers, Hydraulic Disc Brake with Electrical Cut-off Function |
| Rim | Alloy 20 Inch x 30 x 13G x 36H, AV |
| Tire | 20" x 3.0 CHAOYANG H5183 |
| Spokes | Stainless, 13G |
| Parking Brake | With |
| Fenders | With |
| Rear Rack | With |
| Front Basket | With |
| Rear Basket | With |
| Assembly | 95% |
| Colours | 6 Colours |
| Carton Size |
40in x 29.92in x 29.13in 101.5 x 76 x 74cm |
| Load Capacity | 204 kg / 450 LBS |
Specification
Specification
| Motor | 48V*500W |
| Battery | 48V*14.5Ah |
| Range | 56~113 km / 35~70 Miles |
| Charger | 110-240V 54.6V 2A |
| Charging Time | 6-8 Hours |
| Max Safe Speed | 15.5 mph (25 km/h) |
| Controller | Sine Wave FOC 48V 20amp Peak |
| Pedal Sensor | 24 Signals Cadence Sensor |
| Throttle | Twist Throttle |
| Front Light | Big Led eBike Version with Horn Function |
| Rear Light | 3 Tail Light, Brake Highlight Function & Turn Signals Function |

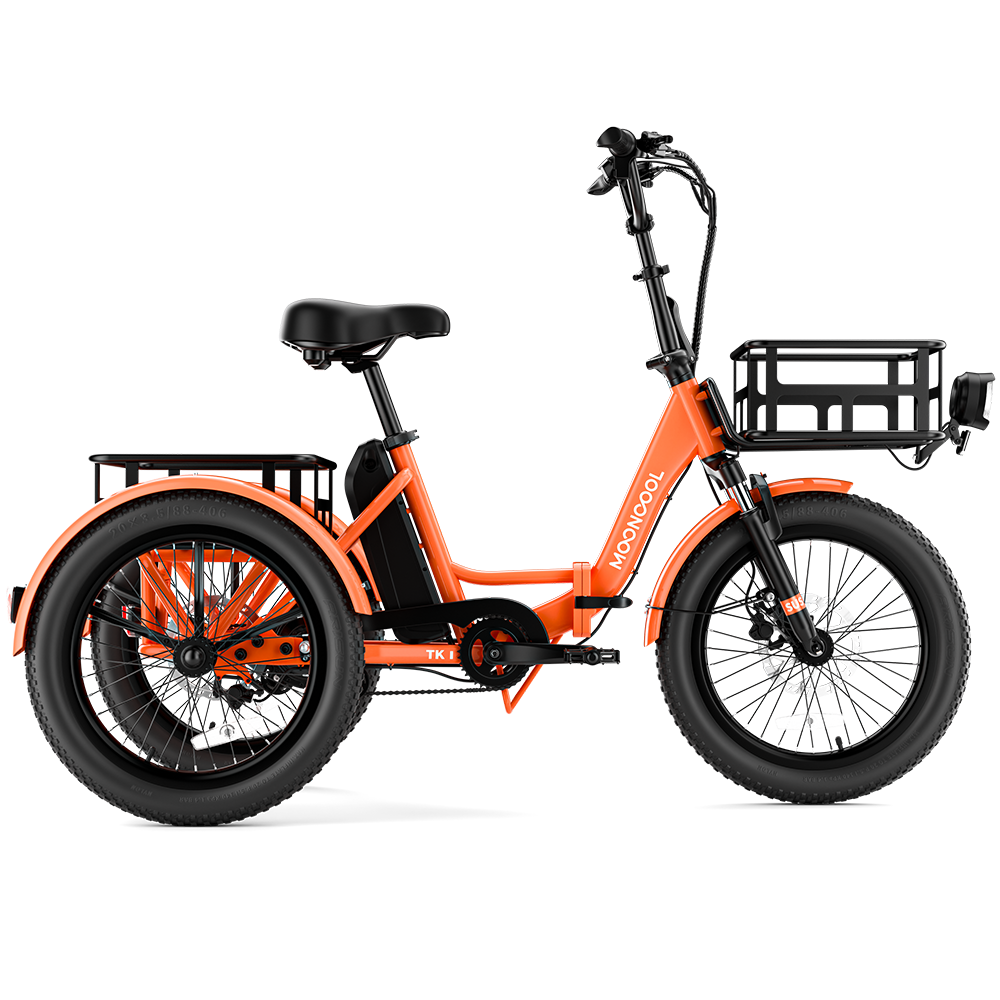

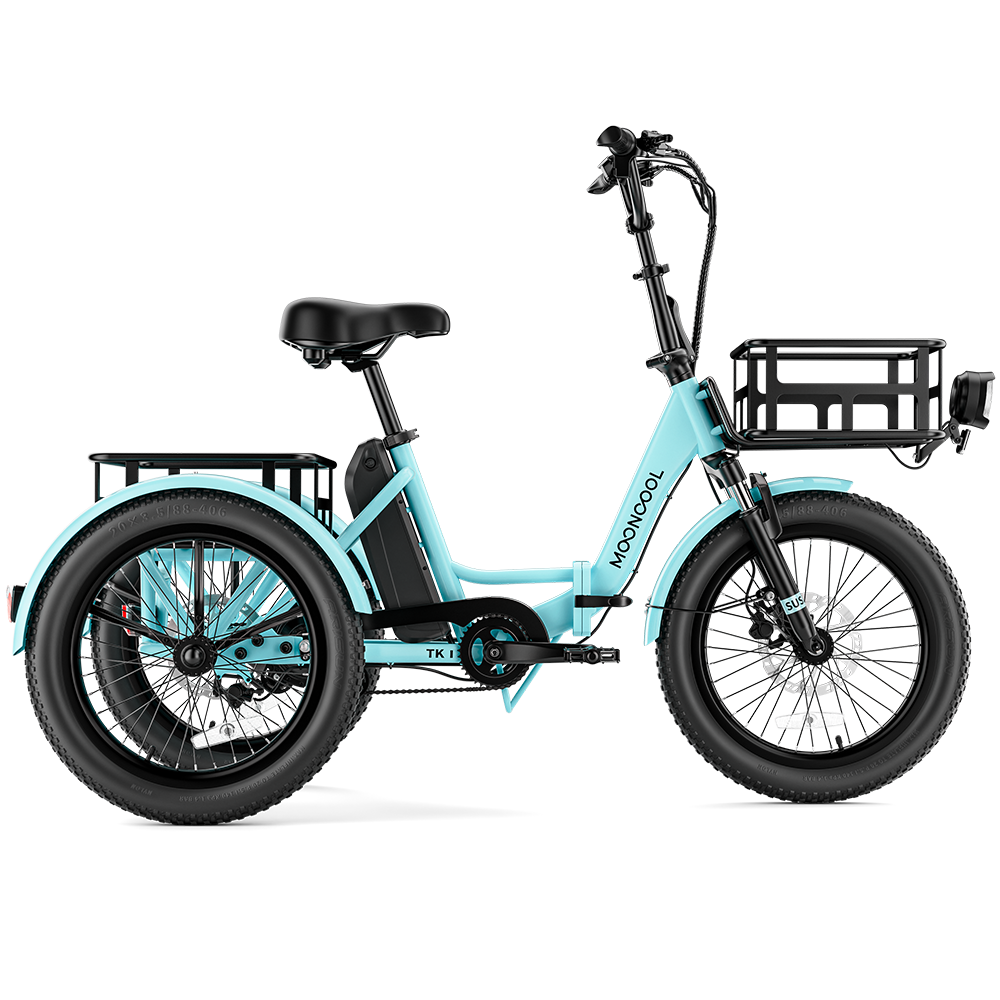

TK1 Folding Electric Trike
Sale price$2,299.99 CAD
Regular price$2,799.99 CAD
Added to Your Cart!
The "60 Mile" Electric Trike You've Never Heard Of - MoonCool TK1 E-Trike Review
TailHappyTV
Mooncool TK1 Folding E-Trike Review | BikeRide.com
BikeRide
Mooncool E-Trike hits the Target (Literally)
Area 13
👀 Mooncool Electric Trike Review // Pros & Cons // Discount Codes
Watts On Wheels
Mooncool TK1 Folding eTrike - TOO MUCH FUN!
CitizenCycle
Mooncool TK1 Unfolded: The Ultimate E-Trike for Riders of All Sizes! | RunPlayBack
RunPlayBack
Safety
Our approach to accessibility goes beyond physical design
Comfort
And inclusivity, making sure every rider feels confident and empowered
Accessibility
It encompasses affordability, ensuring our E-Trikes are within reach

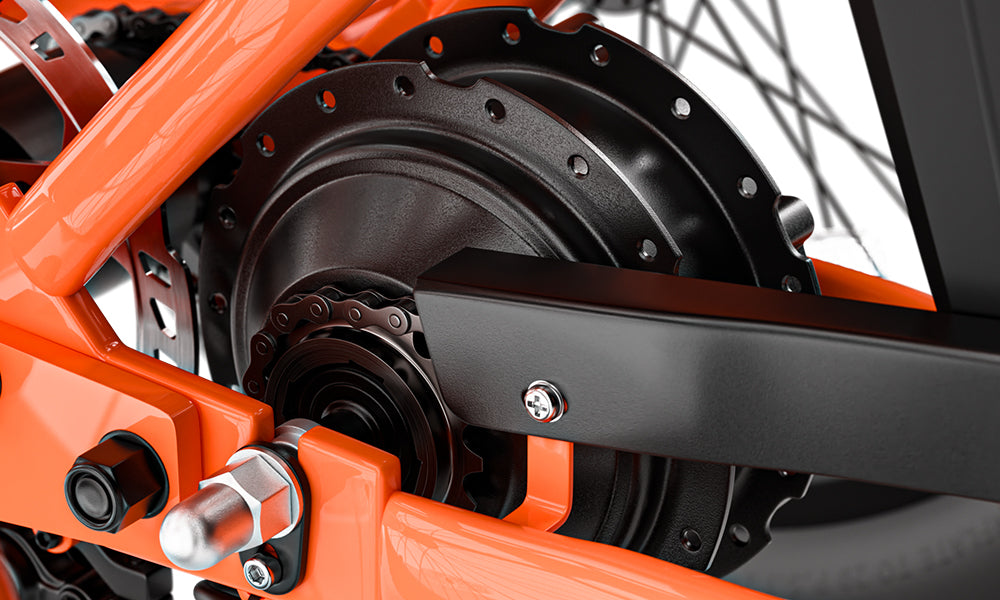

Helical Motor
Featuring a 48V*500W helical motor, delivering 65Nm of torque. Expect nothing less than a powerful and smooth ride.

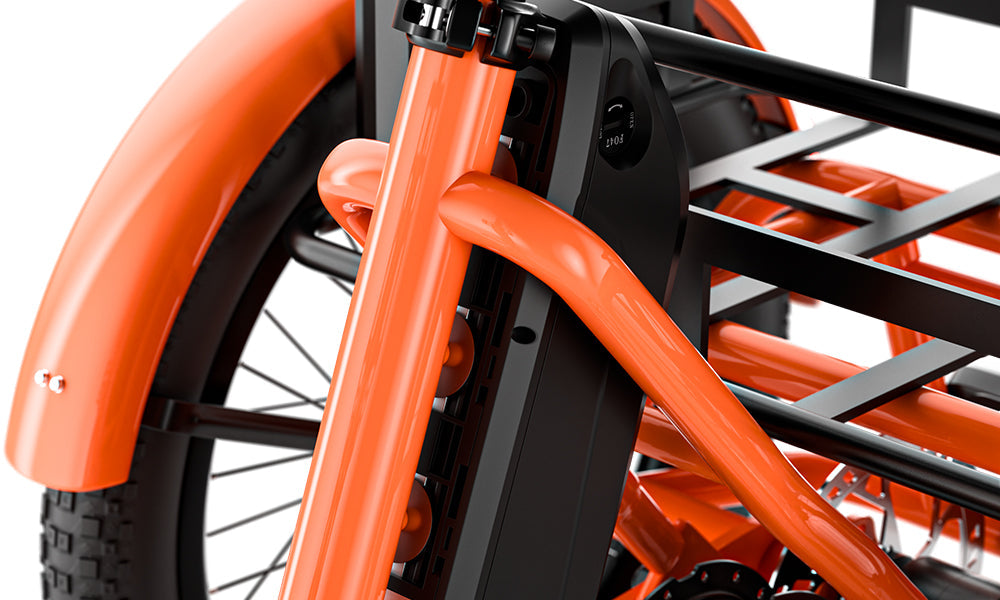

Battery Power
Equipped with a powerful Hailong Plus 48V*14.5Ah lithium battery, the trike offers reliable power & an ideal solution for short commutes. Plus, the battery's removable feature adds convenience & reliability.
Easier to assemble, easier to fold

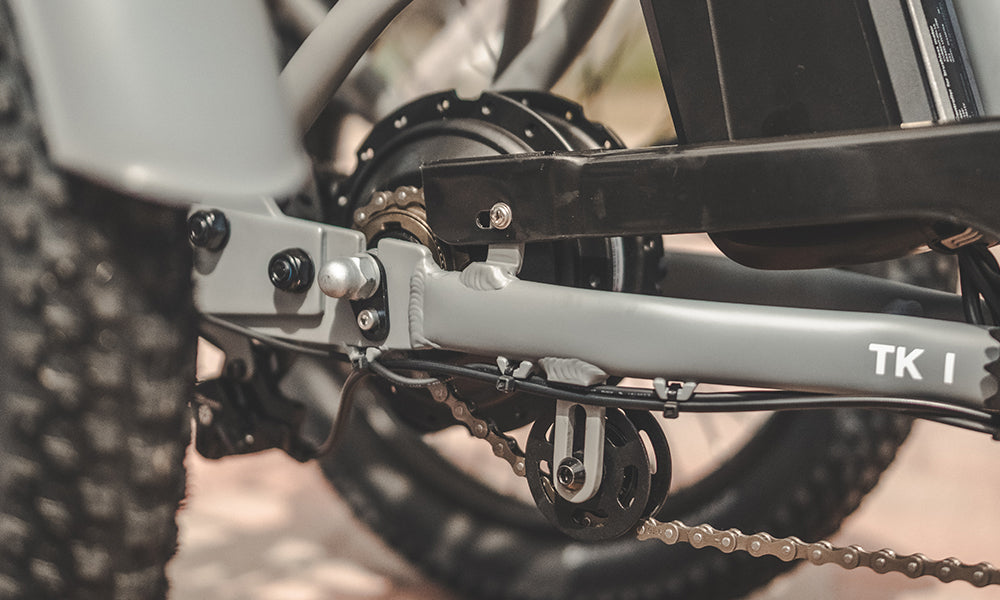

Speed Differential Mechanism
Features a Rear Differential Mechanism, enhancing control and stability on turns. This key element is vital in ensuring a safe and secure ride on any electric trike.
Parking Brake
A parking brake is a safety device that prevents a trike from rolling. It is equivalent to a "kickstand" and increases the safety of the trike.
Folding Structure
Boasts a Folding Structure, a convenient feature that allows for easy storage and transportation. This compact design element enhances the practicality of the electric trike, making it a perfect fit for urban living.

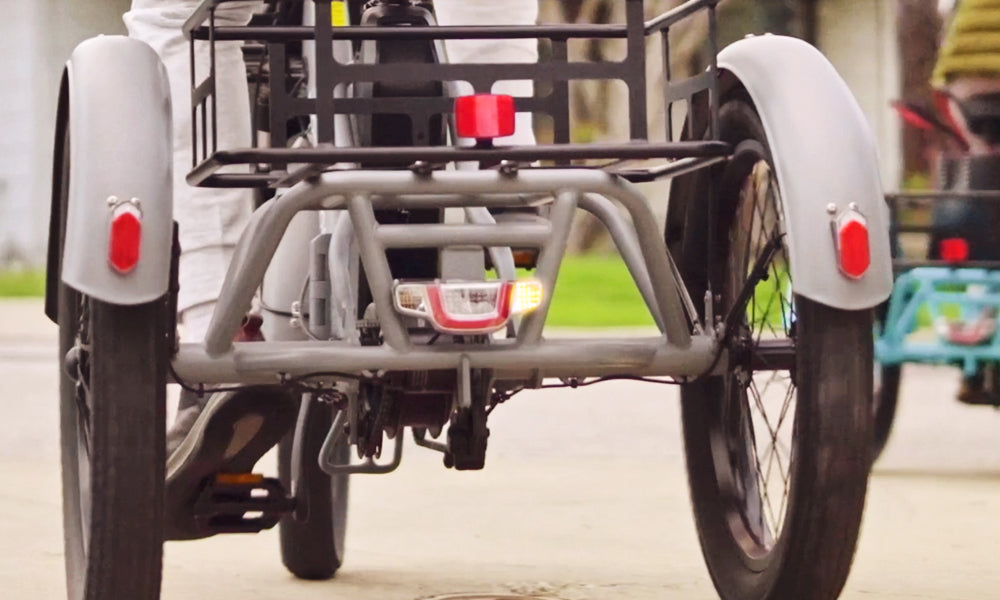

Turn Signals & Horn Function
Presents Turn Signals & Horn Function, improving visibility and promoting safety on the road. These features help communicate your intentions to other road users, enhancing safety for everyone involved.
Large Front & Rear Baskets
Features Large Front & Rear Baskets, providing ample storage space for your belongings. Whether for shopping trips or personal items, these baskets add a layer of practicality and convenience to your electric trike experience.
The Safe and Convenient Choice
Assembly Video
Our assembly videos will walk you through assembly
FAQs
How assembled is the TK1 Folding electric trike when it arrives, and what will I need to do to finish the assembly?
The TK1 Folding electric trike comes 95% pre-assembled. The final steps are simple and can be easily completed by you in just a few minutes. The necessary tools and clear instructions are provided, ensuring a hassle-free final setup.
Is the trike suitable for seniors or individuals with disabilities?
Yes, indeed. Our trike is designed with ease of use and stability in mind, making it a great choice for older adults and persons with disabilities who are looking for a safe and comfortable riding experience.
Does the electric trike come with a battery and both front and rear baskets included?
Yes, it does. The trike comes equipped with a battery, and we include both a front and a rear basket as standard features, so you have everything you need to get started right away.
What are the dimensions of the TK1 Folding when it's folded?
When folded, the TK1 Folding measures 100 * 77 * 75 cm (39.37 * 30.31 * 29.53 inches), making it compact for storage and convenient to transport.
What's the recommended height for someone riding the TK1 Folding?
The TK1 Folding electric trike is designed for riders who are between 5’-6’3’’ tall for optimal comfort and performance.
