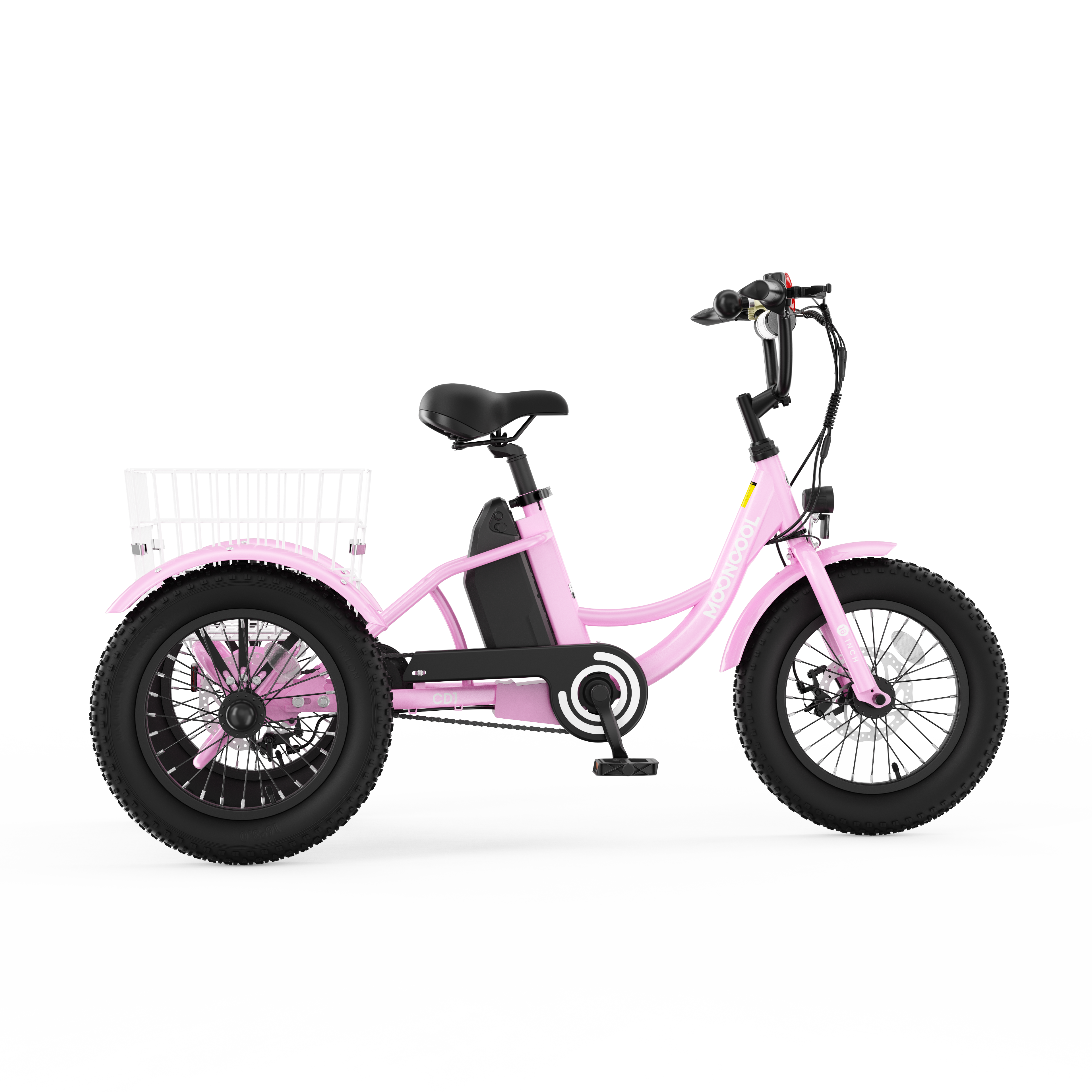

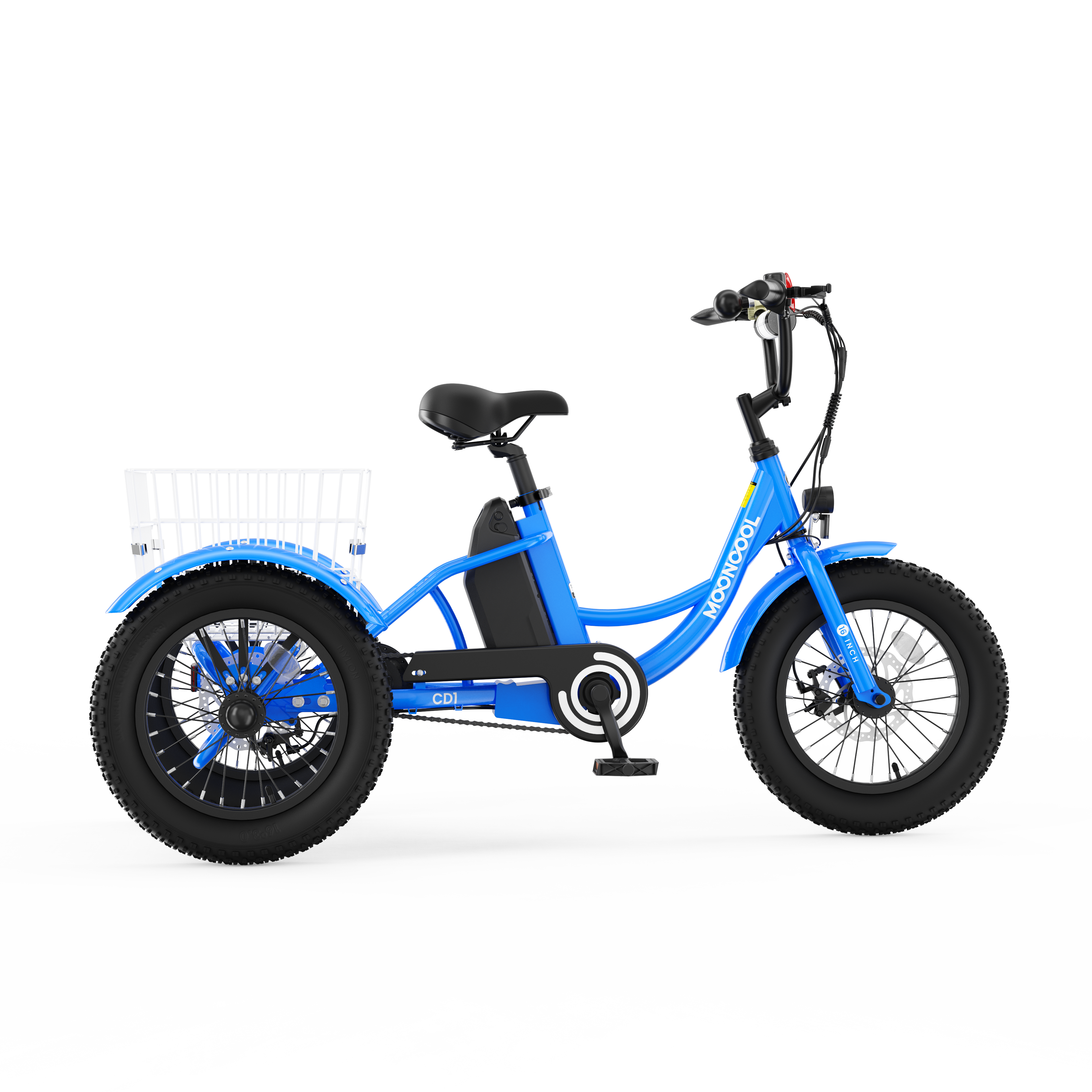

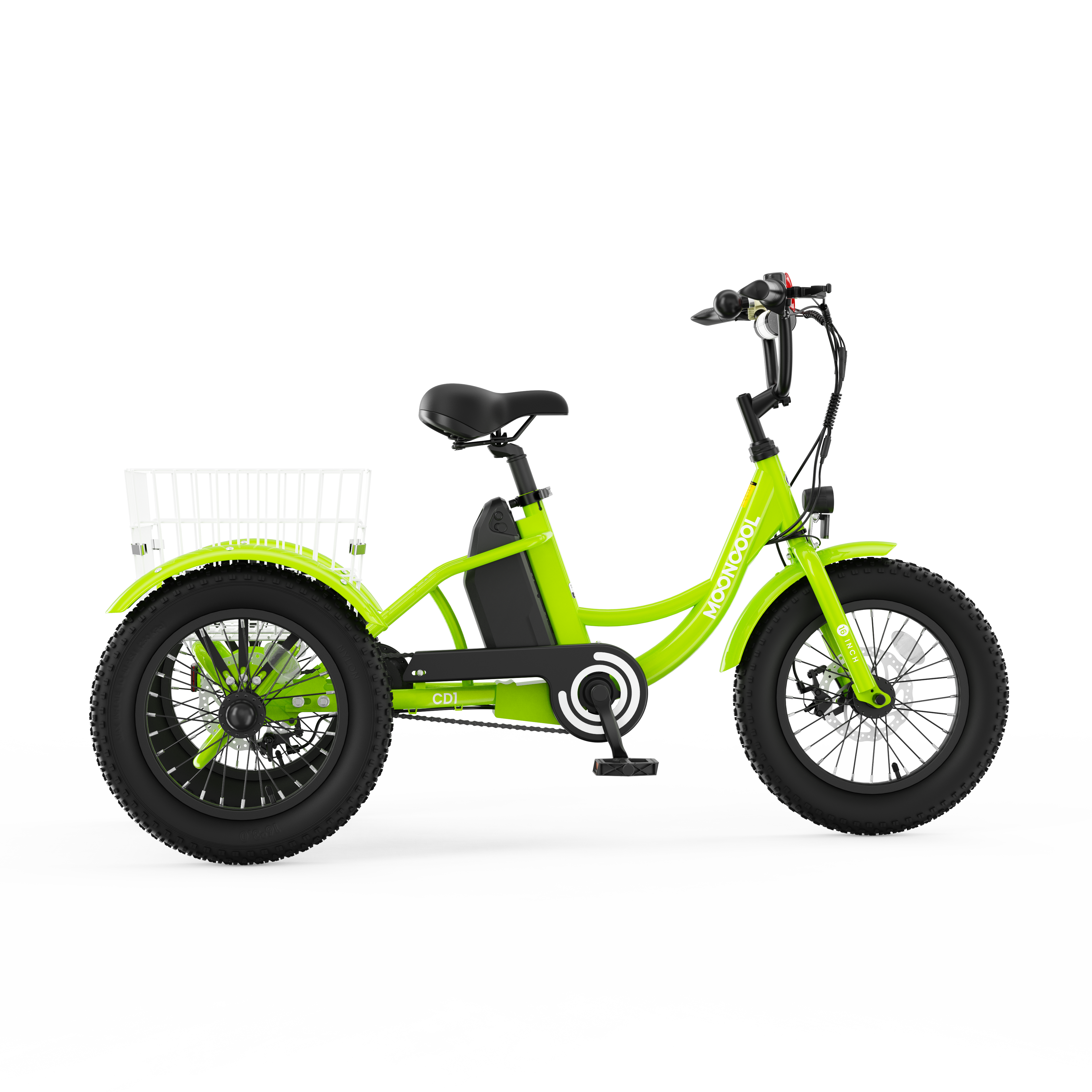

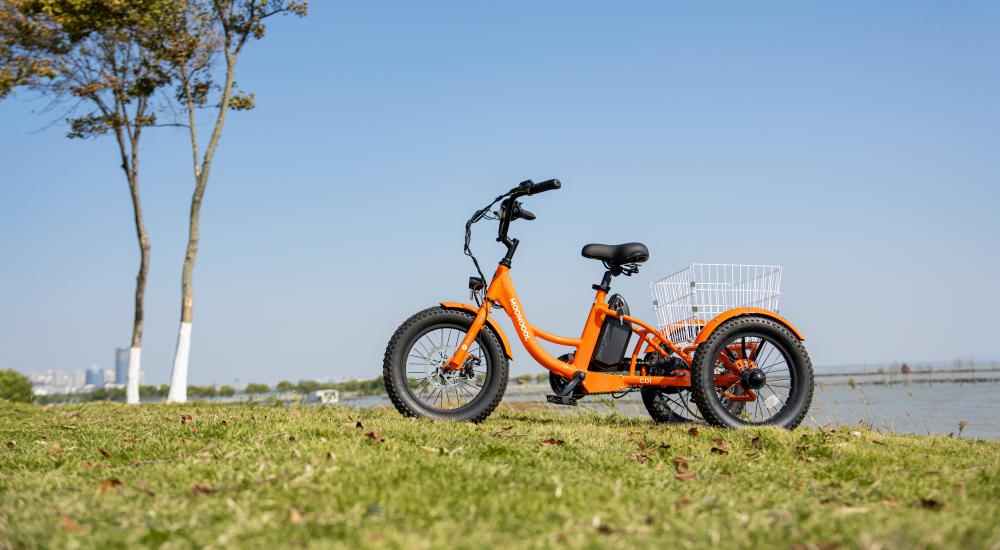

CD1 Electric Youth Trike
Size & Fit
| ★ Recommended Height | 4'0"~4'11" 1220 ~ 1500 mm |
| A Top Tube Horizontal | 15 in 380 mm |
| B Wheelbase | 40.2 in 1020 mm |
| C Stand Over Height | 14.2 in 360 mm |
| D Handle Bar Length | 23.6 in 600 mm |
| E Total Length | 57.9 in 1470 mm |
| F Total Width | 24 in 610 mm |
| G Seat Height Min / Max | 25.6~31.5 in 650 ~ 800 mm |
| H Handle Bar Height Min / Max | 33.5~34.7 in 850 ~ 880 mm |
| I Rear Basket | 17.3 × 14.6 × 10.6 in 440 × 370 × 270 mm |
| J Wheel Size | 16 in 410 mm |
| K Seat Size(L×W) | 9.9 × 8.3 in 250 × 210 mm |
Components
| Weight |
G.W. 61.7 lbs, N.W. 55.1 lbs |
| Frame | 6061 Aluminum |
| Fork | Hi-Ten Steel, Rigid Fork |
| Handle Bar | DTS-940E, 560 x ∮22.2 x 1.4T, Swallow Style, Bar Bore 25.4mm, Horizontal Bar Height 105mm, Grip Distance 180mm |
| Stem | DTS-665, 25.4 x 25.4 x 180mm x 1.6T |
| Grip | Soft PVC Rubber |
| Saddle | Comfortable Big Vacuum-Foamed Seat |
| Seat Post | 6061 Aluminum T6, 30.9 x 250mm Length |
| Seat Post Clamp | 31.8mm, Quick Release |
| Chainwheel | 127mm Alloy Crank, 32T Steel Chainring |
| Chain | Z410 |
| Freewheel | FW-322B, 1/2*1/8*22T |
| Pedal | Black Plastic, 9/16-inch |
|
Display
|
Intelligent Digital LCD Display Appears More Clearly In Sunlight, Multicolor
|
| Brake | StarUnion Mechanical Brake, Alloy, 160mm Rotor |
| Brake Level | StarUnion Alloy 3-Finger Mechanical Brake with Electrical Cut-Off Function |
| Rim | Alloy 16-inch x 3.0" x 13G x 28H |
| Tire |
16" * 3.0
|
| Spokes | Stainless, 14G |
| Fenders |
Included
|
| Rear Rack |
Included
|
| Rear Basket | Folding Cart Basket, 34x28cm, 42x38x25cm |
| Assembly | 75% |
| Colors | 6 Colors |
| Carton Size | 120 x 67 x 28 cm /
47.2 x 26.4 x 11 inches |
| Load Capacity |
350LBS
|
| Recommended Age |
8-14
|
Specification
| Motor | 24V*250W |
| Battery | 24V*10.4Ah |
| Range | 20~35 Miles |
| Charger | 110-240V 29.4V 2A |
| Charging Time | 5 Hours |
| Max Safe Speed | 12 Mph |
| Controller | Sine Wave FOC 24V 12amp Peak |
| Sensor | 24 Signals Node Sensor |
| Throttle | Half Twist Throttle |
| Wire Harness | All Water-Resistant |

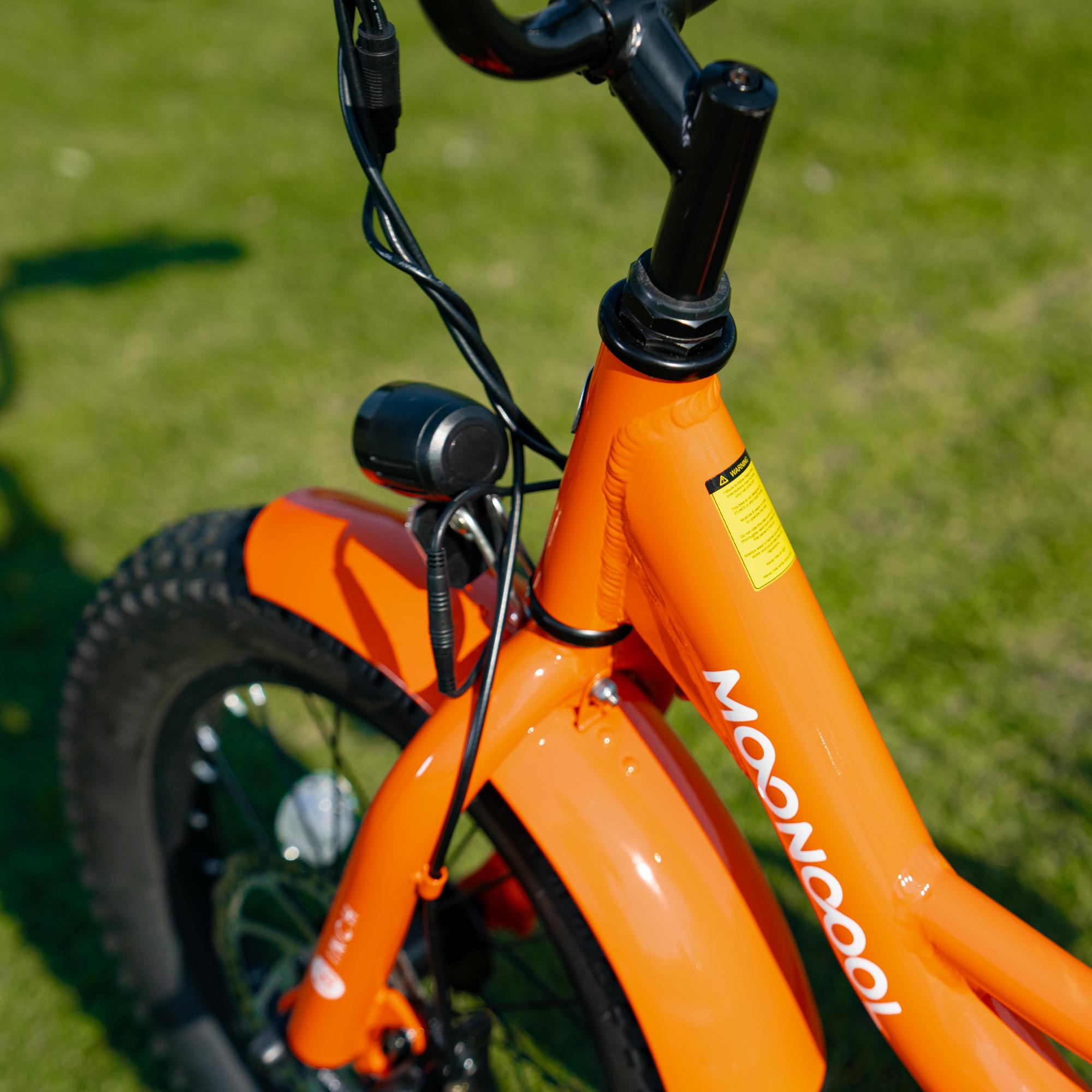

| Front Light | 24V, 25LUX |
Safety
Our approach to accessibility goes beyond physical design
Comfort
And inclusivity, making sure every rider feels confident and empowered
Accessibility
It encompasses affordability, ensuring our E-Trikes are within reach

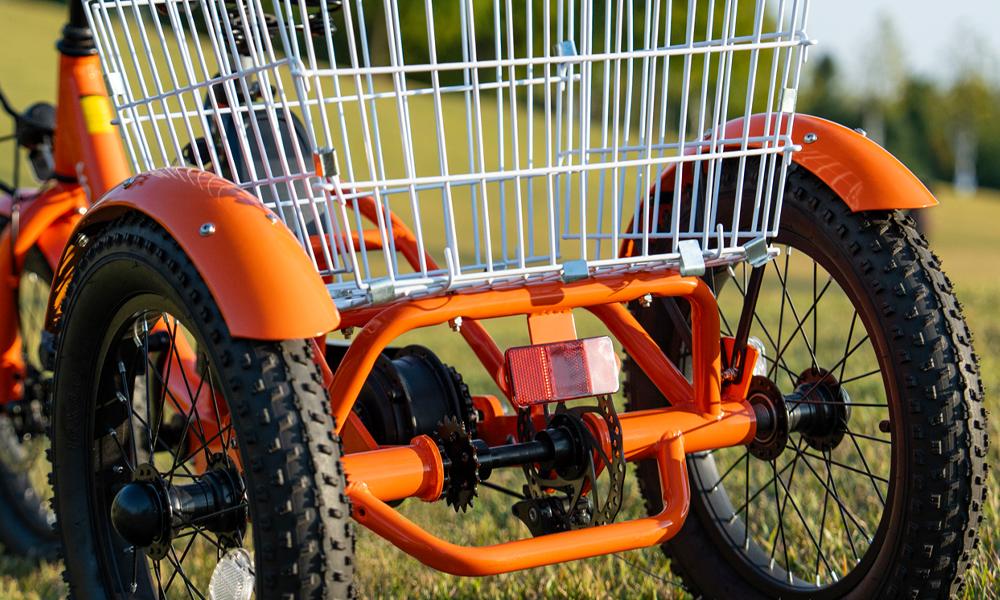

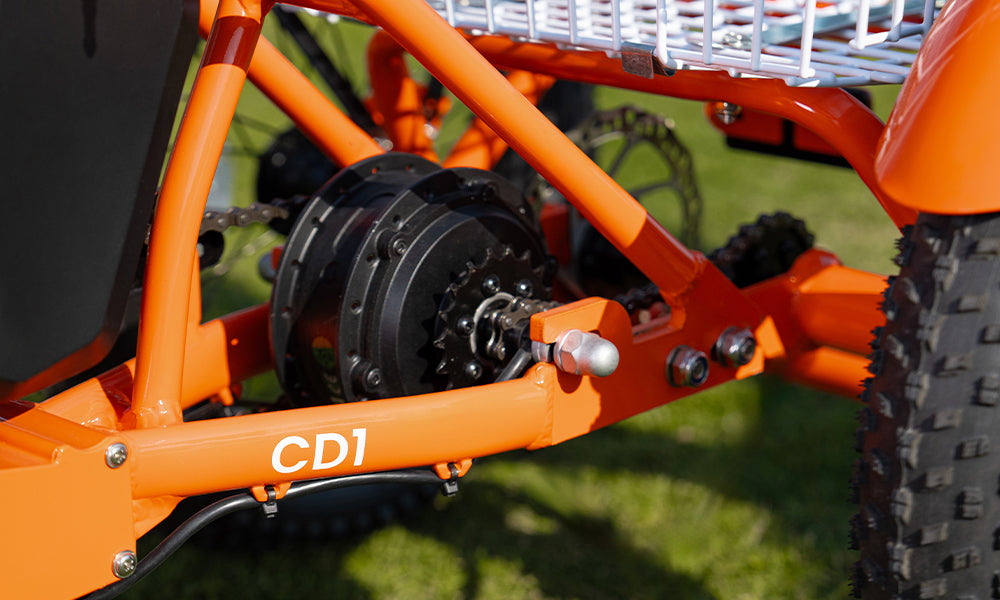

Rear Drive Motor
The 250W rear-drive motor provides the perfect amount of power for young riders, ensuring a smooth and controlled experience while riding.

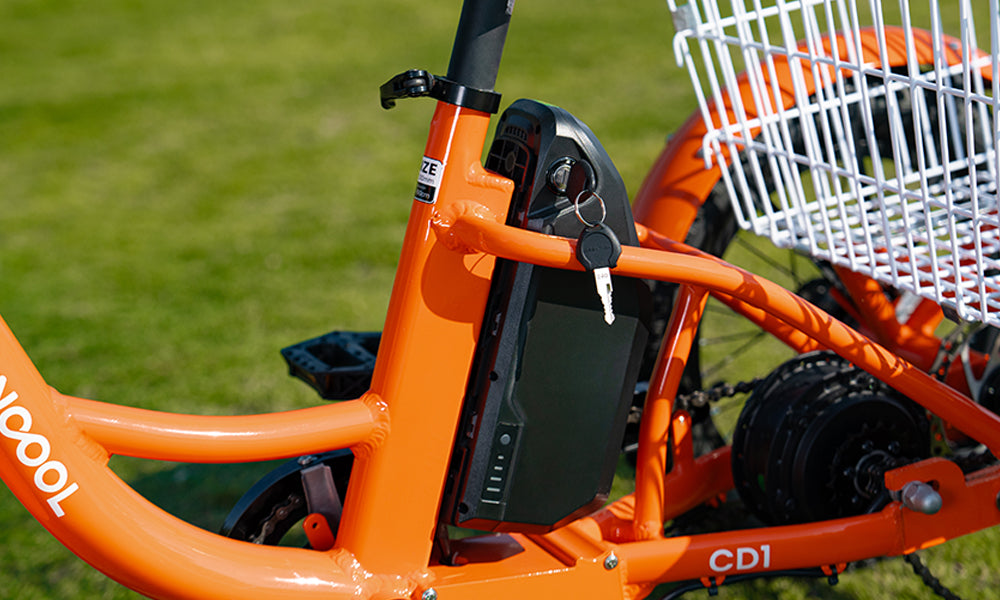

Battery Power
Equipped with a 24V*10.4Ah lithium battery, it offers a range of 20-35 miles per charge. Take your kids on unforgettable adventures!

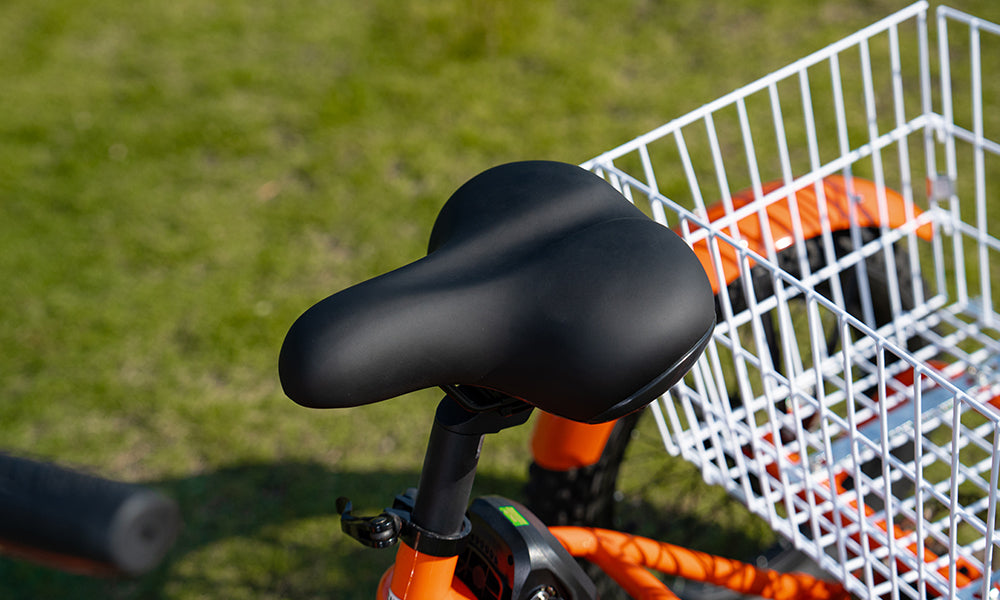

Adjustable Seat
The seat can be easily adjusted to ensure your child enjoys a comfortable riding position, making every journey perfect.

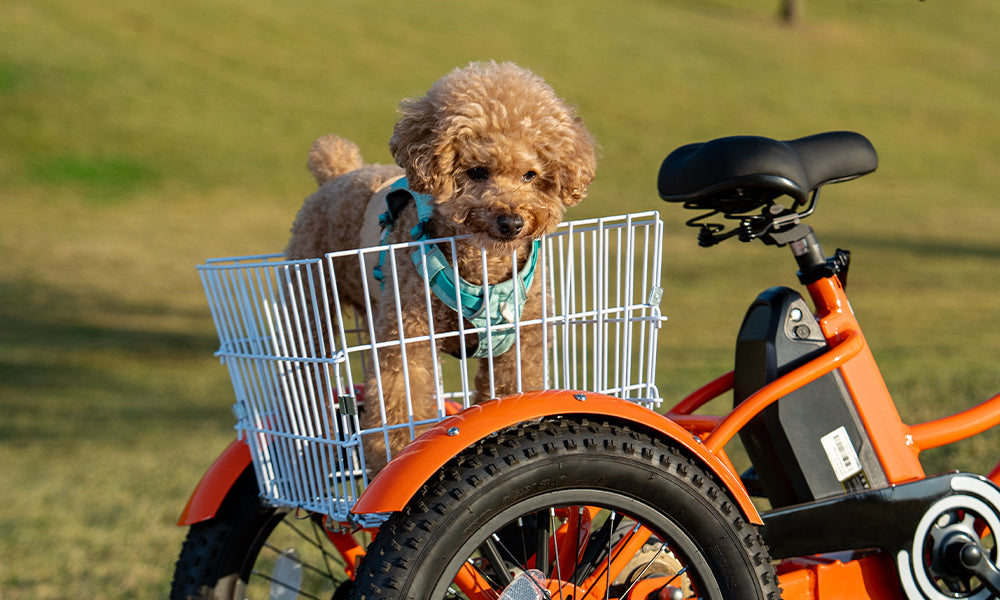

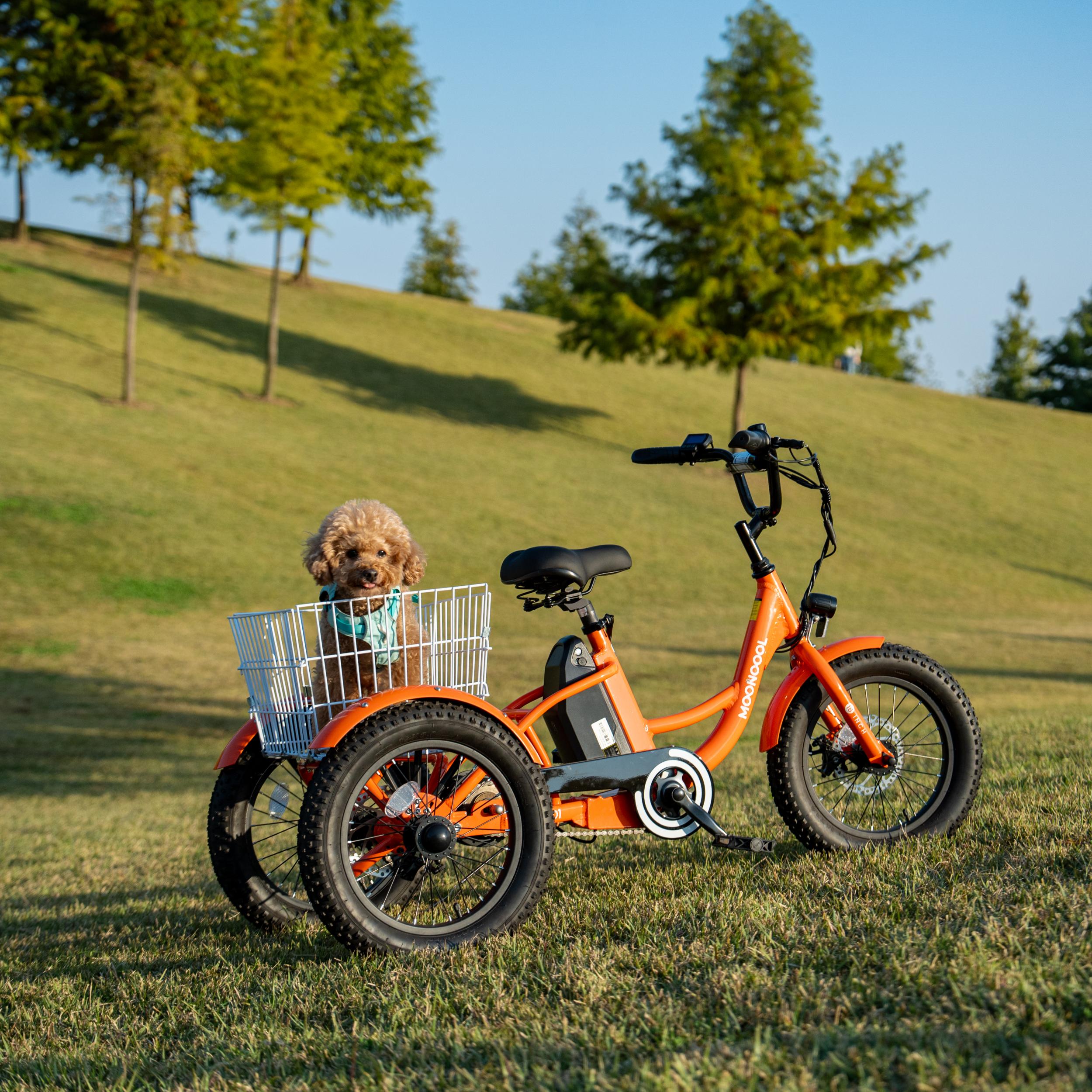

Large Rear Basket
Whether it's carrying beloved toys, a water bottle, or even a pet, the rear basket's large capacity and 350 lbs weight capacity ensure that kids can bring everything they need for their adventures.

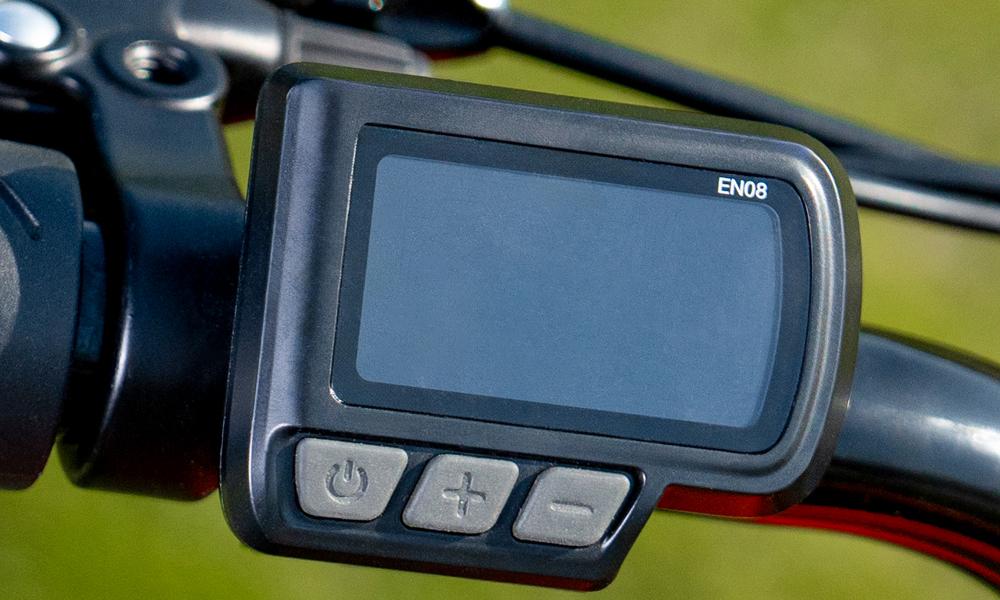

LCD
Intelligent Digital LCD Display Appears More Clearly In Sunlight, Multicolor

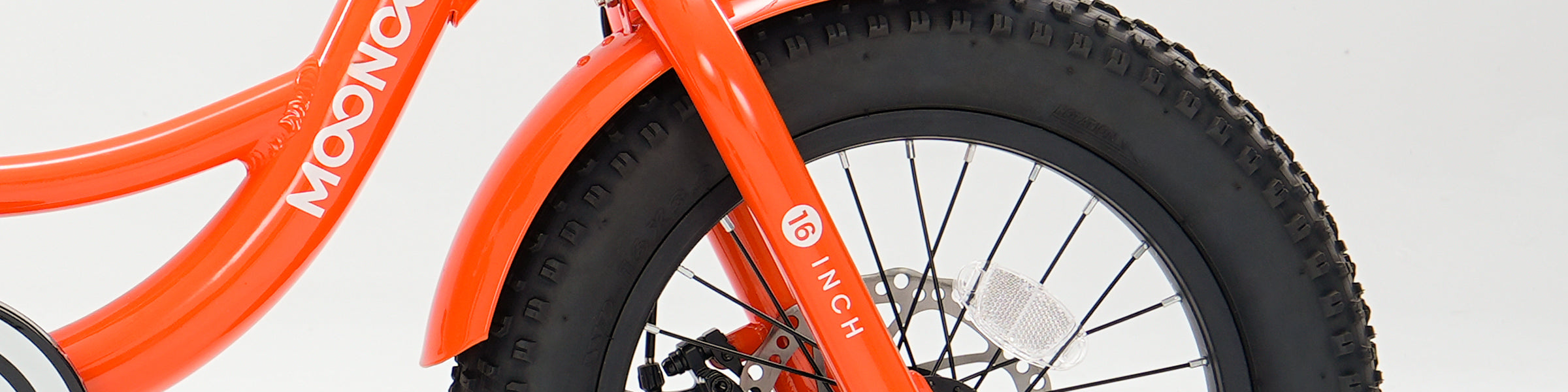

16" Tire
16-inch tires ensure a smoother and safer ride, guaranteeing a comfortable riding experience.

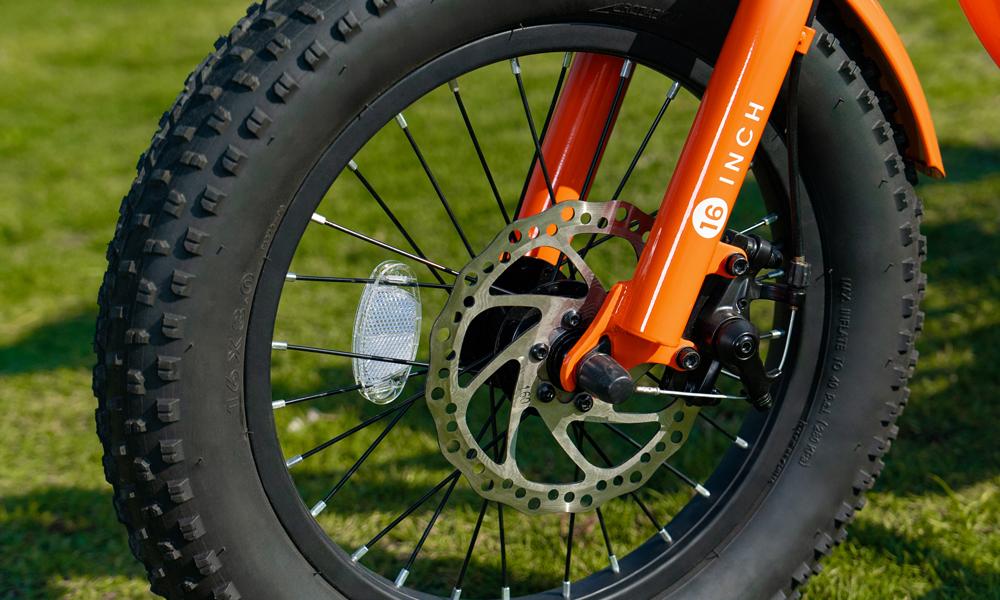

Rear Brake Reflector
The Rear Brake Reflector provides passive reflective warning, enhancing your vehicle's visibility and offering a profound sense of safety.

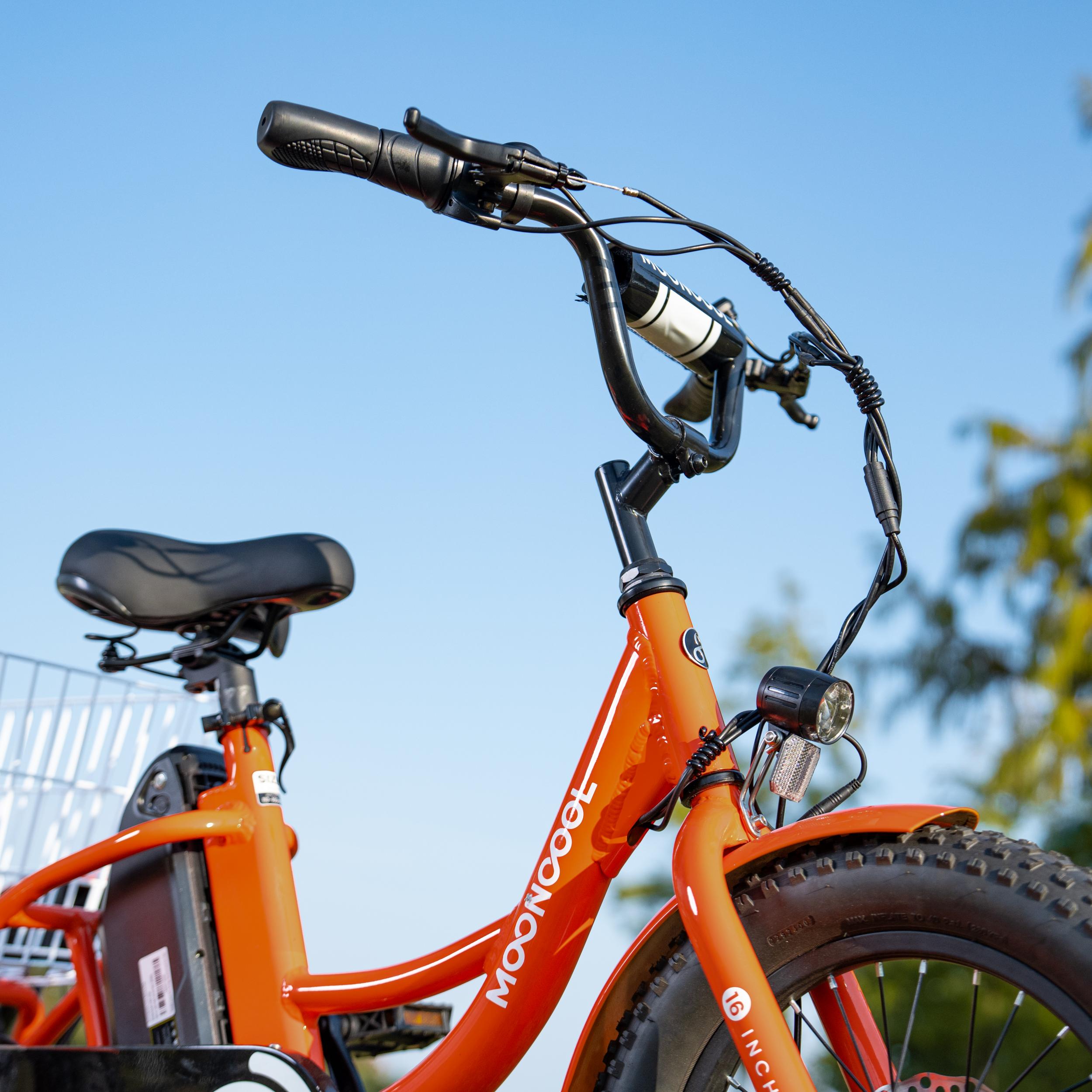

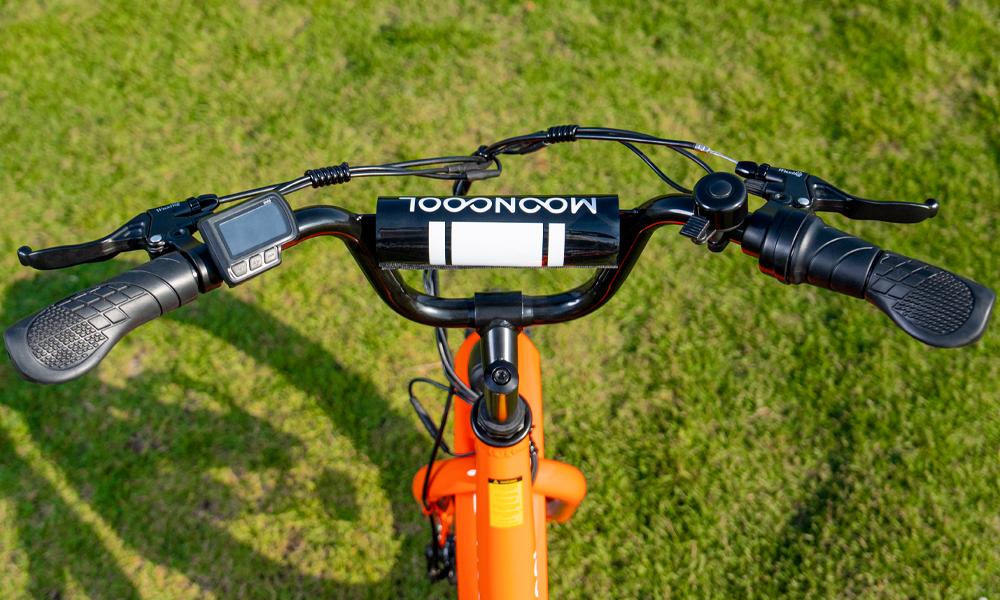

Adjustable Handle Bar
The adjustable handlebar allows you to fine-tune your riding posture, ensuring comfort during long rides and smoother handling.
Joyful & Safe Little Ride
Assembly Video
Our assembly videos will walk you through assembly
FAQs
What is the recommended height for riders of the CD1?
The CD1 is designed for riders between 4'0" and 4'11" tall, providing optimal comfort and performance within this height range.
What is the recommended age range for riders of the CD1?
We recommend the CD1 for riders aged 8 to 14
What is the weight of the CD1?
G.W. 61.7 lbs, N.W. 55.1 lbs
