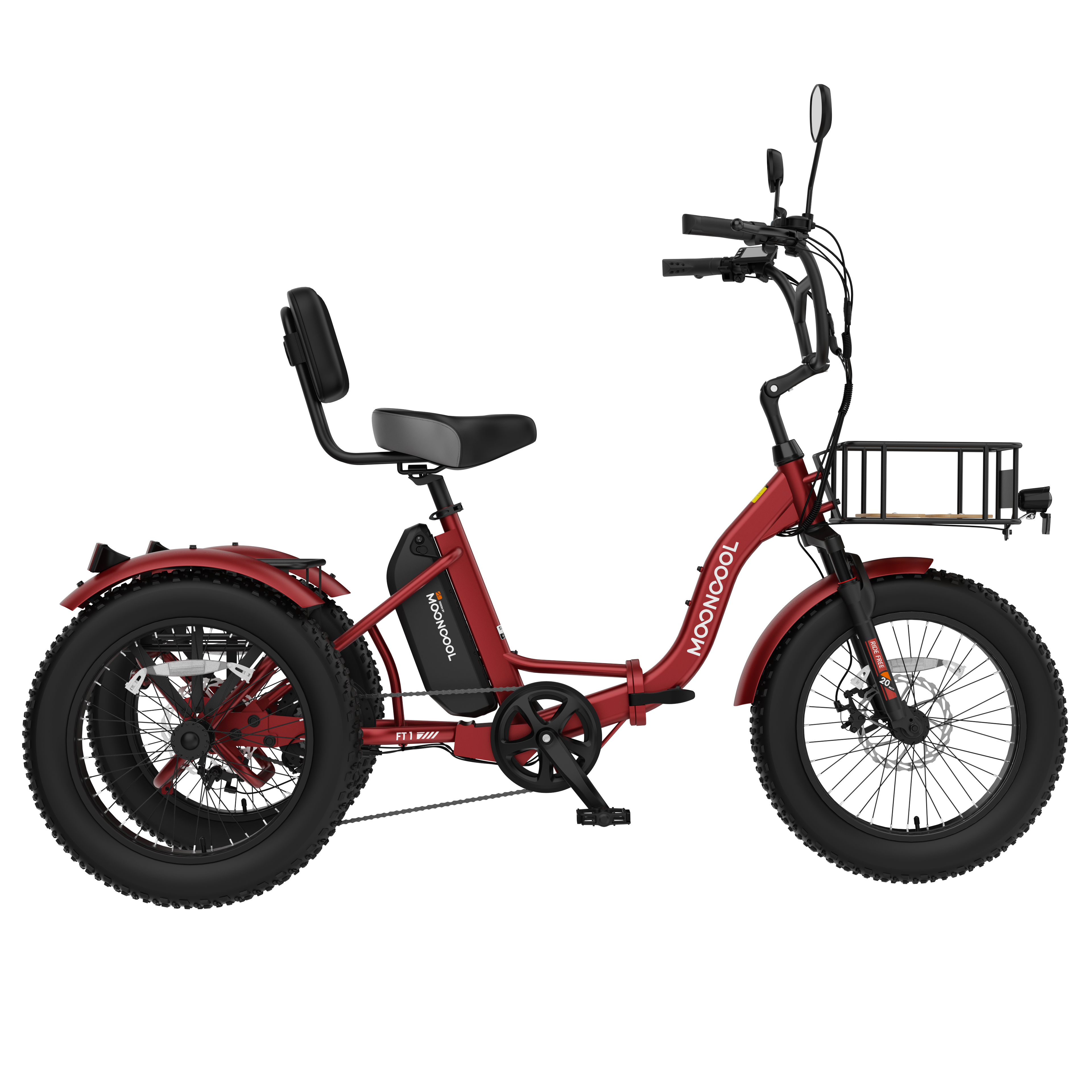

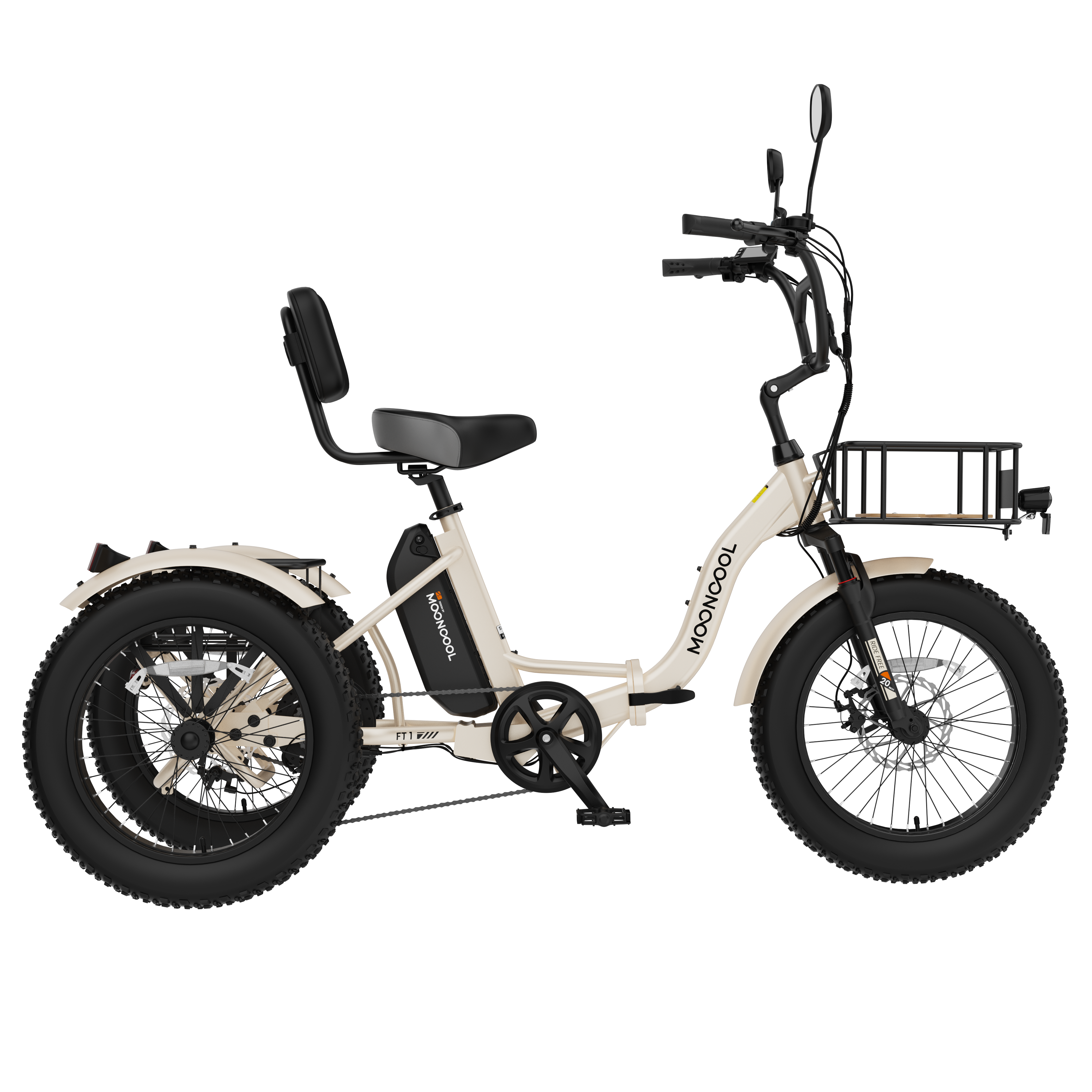

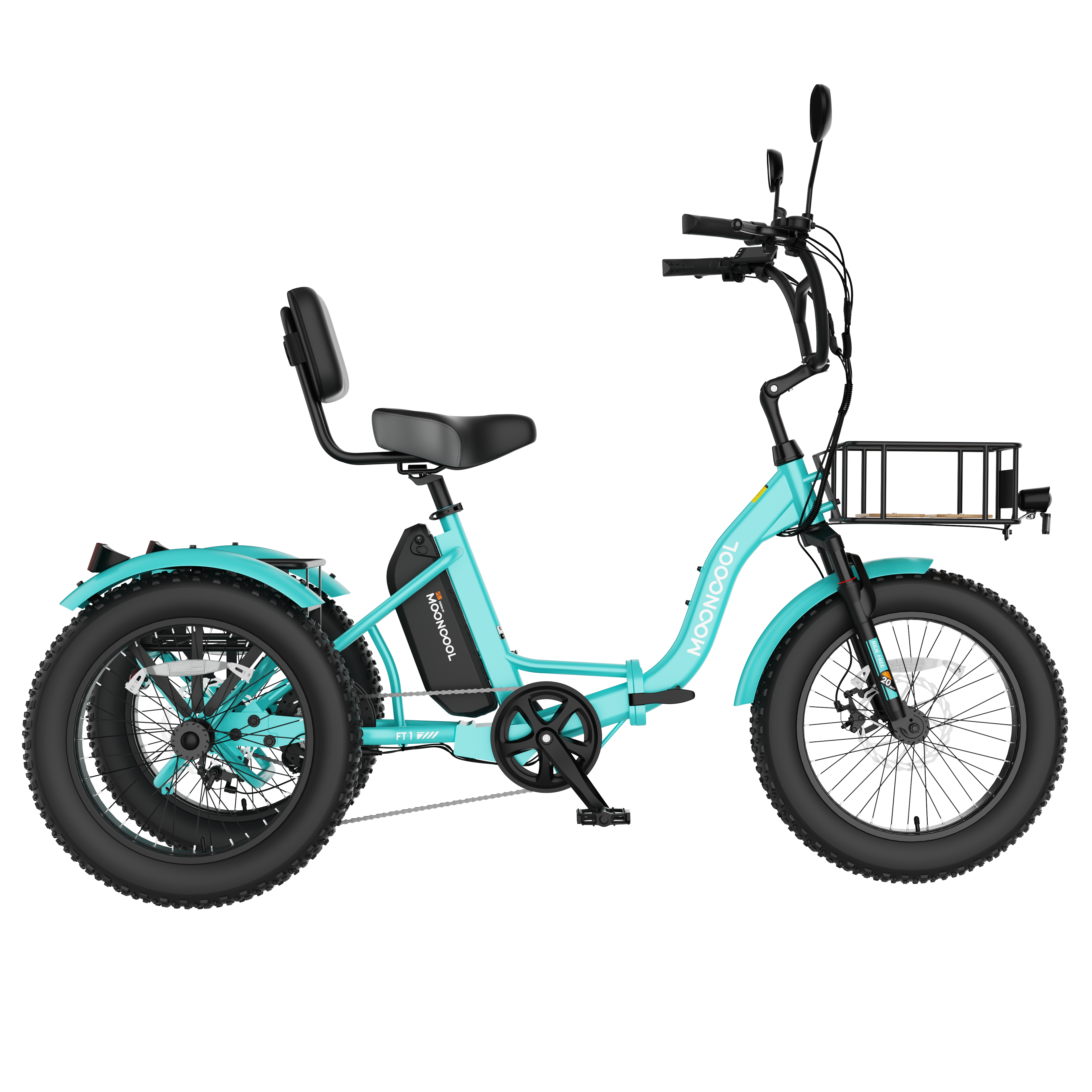

FT1 Electric Trike
Size & Fit

| ★ | Folded Size |
41.3 × 33.5 × 50.4 in 105(L) *85(W) *128(H) cm |
| ★ | Recommended Height | 5'~6'3" |
| A | Top Tube Horizontal | 25.2 in |
| B | Wheelbase | 51.2 in |
| C | Stand Over Height | 15.7 in |
| D | Handlebar Length | 33.9 in |
| E | Total Length | 70.9 in |
| F | Total Width | 30.7 in |
| G | Seat Height Min/Max | 30 in ~ 40 in |
| H | Handlebar Height Min/Max | 44 in ~ 45 in |
| I | Front Basket | 12.2 * 11.8 * 5.5 in |
| J | Rear Basket | 18.9 * 14.2 * 5.9 in |
| K | Wheel Size | 20.0 * 4.0 in |
| L |
Seat Size
|
12.6 * 11.4 in |
Components
| Weight | G.W. 116.4lbs, N.W.89.9lbs |
| Frame | 6061 Aluminum+Hiten Steel, Folding Structure, Rear Differential Mechanism. |

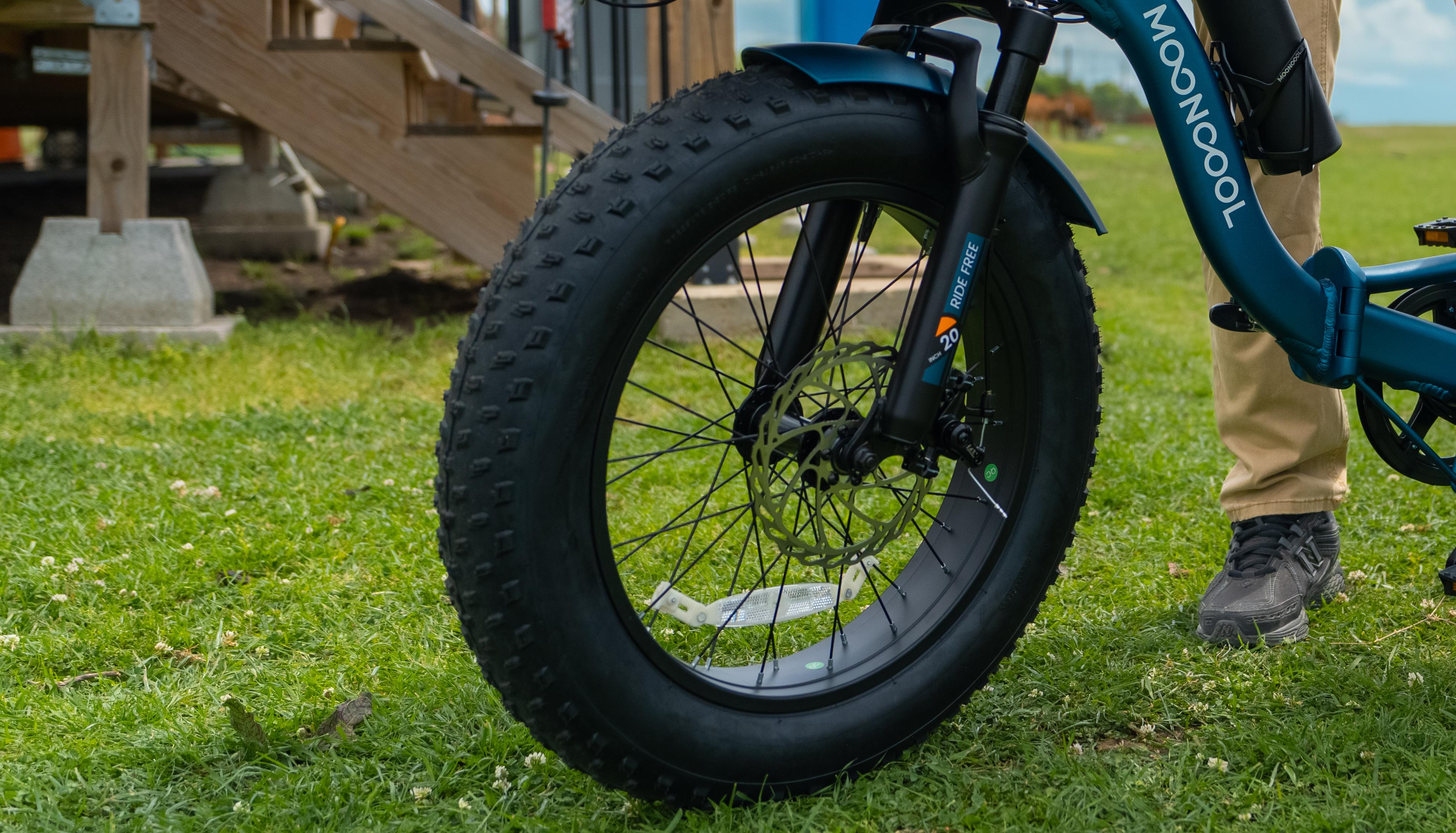

| Fork | Suspension, Spring Structure. |
| Handlebar | Alloy ,Bmx Style, Bar bore 1.25in, Length 25.98in, Rise 4.72in |
| Stem | Alloy,Barboe 1.13in x 1.25in, Folding, Extention Tube 7.1in |
| Grip | Soft PVC Rubber |
| Saddle | Comfortable Big Vacuum Foaming Seat With Backrest |
| Seat Post | Alloy ∮1.22 x 0.09t x 11.8in Length |
| Seat Post Clamp | ID1.37in, Quick Release |
|
Display
|
Multifuction YL81, LCD Color Screen, Appears More Clearly in Sunlight, 3 Levels, Speed Limit 16MPH
|
| Shifter | Shimano 7 Speed |
| Derailleur | Shimano |
| Chainwheel | 1/2 × 3/32 × 44t × 6.69 inches Alloy Crank, Steel Chainring 44t |
| Chain | 1/2*3/32*132l |
| Freewheel | 1/2*3/32*14-28t |
| Pedal | Alloy Body 9/16" |
| Brake |
Yak, Merchanic Disc Brake , Alloy , Rotor 180mm
|
| Brake Level |
Starunion, Alloy 3fingers, Mechanic Disc Brake With Electrical Cut-off Fuction With Parking Fuction
|
| Rim | Alloy 20inch * 4.0" * 13g * 36h, AV |

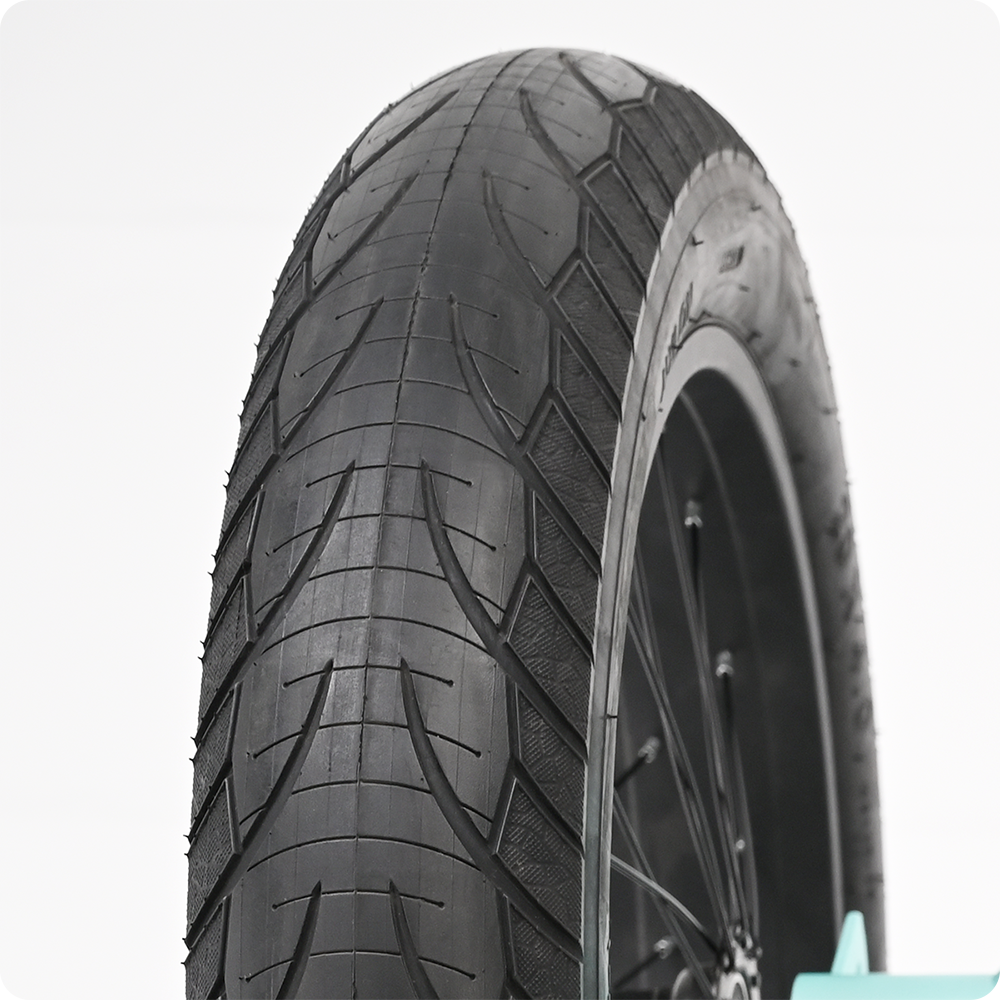

| Tire | 20" *4.0 |
| Spokes | Stainless, 13g |
| Parking Brake | With |
| Fenders | With |
| Rear Rack | With |
| Front Basket | With |
| Rear Basket | With |
| Assembly | 90% |
| Colors | 6 Colors |
| Carton Size |
58.7 × 13.8 × 37 inches 149 x 35 x 94 cm |
| Load Capacity | 400LBS |
Specification
| Motor | 48V*500W Peak Power 1092W, 45Nm Peak Torque |
| Battery Capacity | Lithium 48V*14.5Ah |
| Battery Range | 35~60 Miles |
| Charger | 100-120V 54.6V 2.0A |
| Battery Charging Time | 7-9 Hours |
| Top Speed | 15.5 MPH |
| Controller | Sine Wave Foc 48V20AMP Peak |
|
Pedal Sensor |
Cadence Sensor |
|
Wire Harness |
All Water Resistant |
| Throttle | Thumb Throttle |

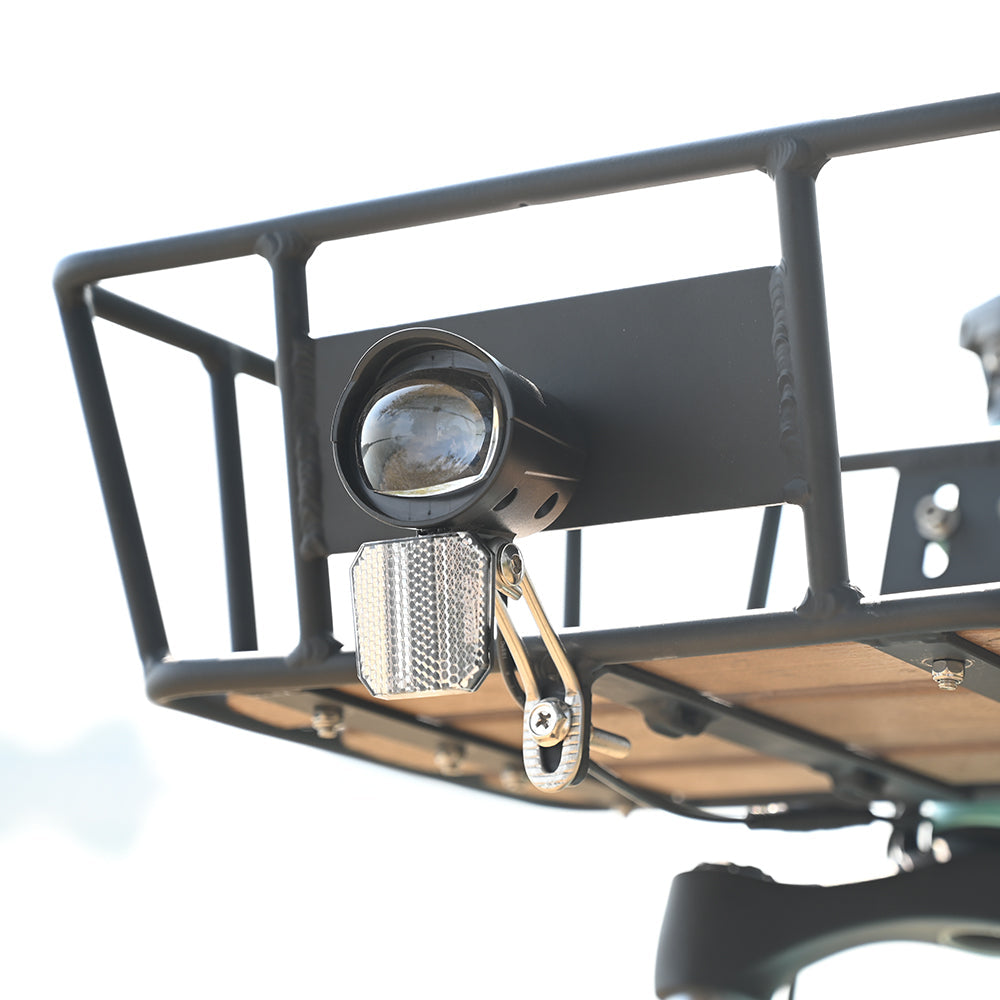

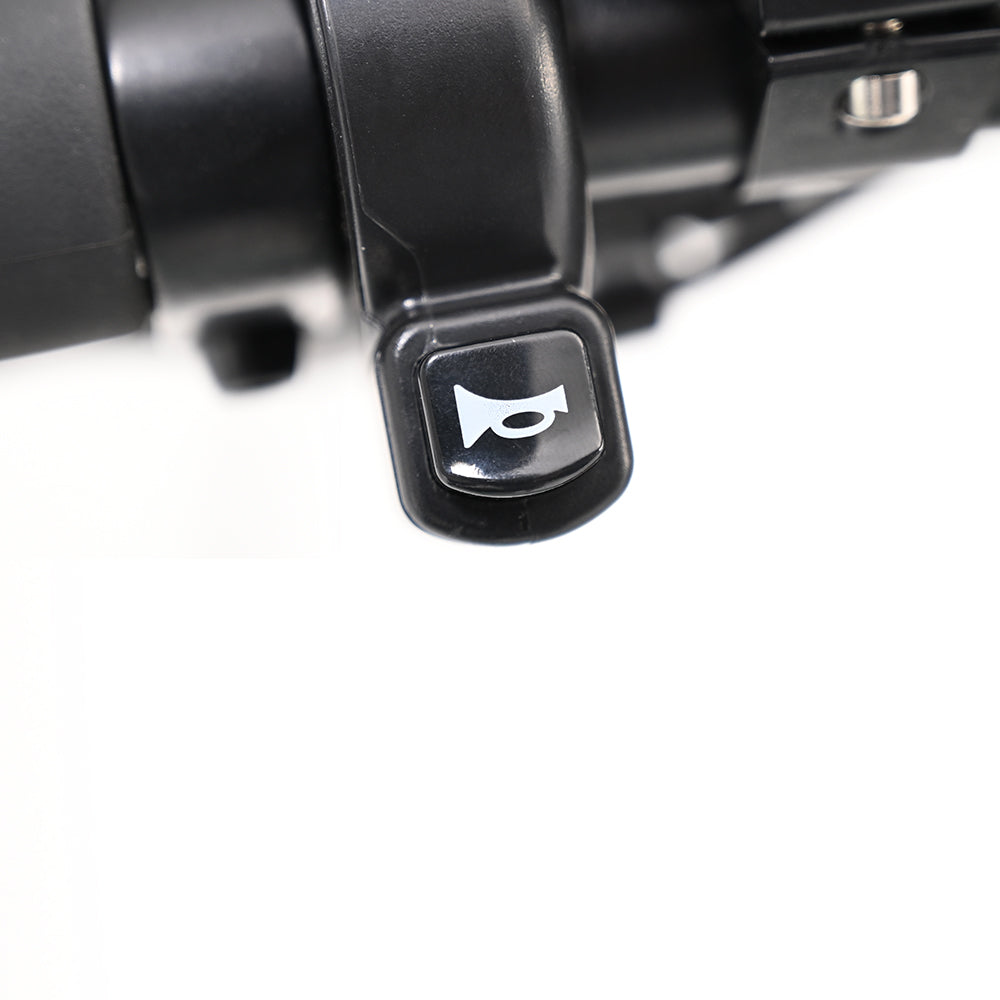

| Front Light | LED Ebike Version with Horn Function |
| Rear Light | LED Tail Light, Brake Highlight Function, Turn Signals Function |

Safety
Our approach to accessibility goes beyond physical design
Comfort
And inclusivity, making sure every rider feels confident and empowered
Accessibility
It encompasses affordability, ensuring our E-Trikes are within reach

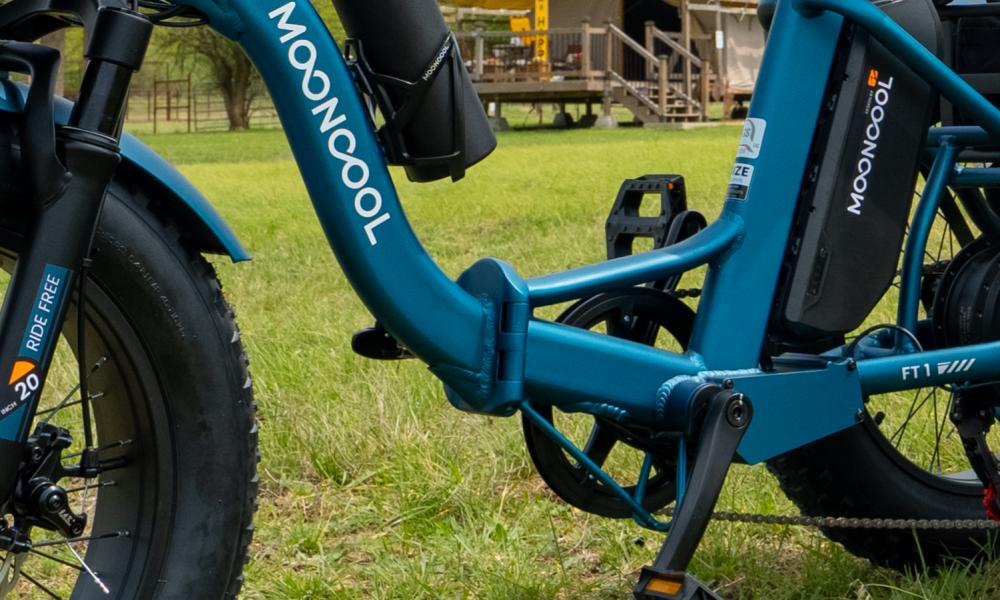

Folding Structure
Boasts a Folding Structure, a convenient feature that allows for easy storage and transportation. This compact design element enhances the practicality of the electric trike, making it a perfect fit for urban living.

Battery Power
With a 48V*14.5Ah lithium battery, it allows for extended rides with a range of 35-60 miles. Requiring a charging time of 7-9 hours, the battery ensures reliable, sustained power.

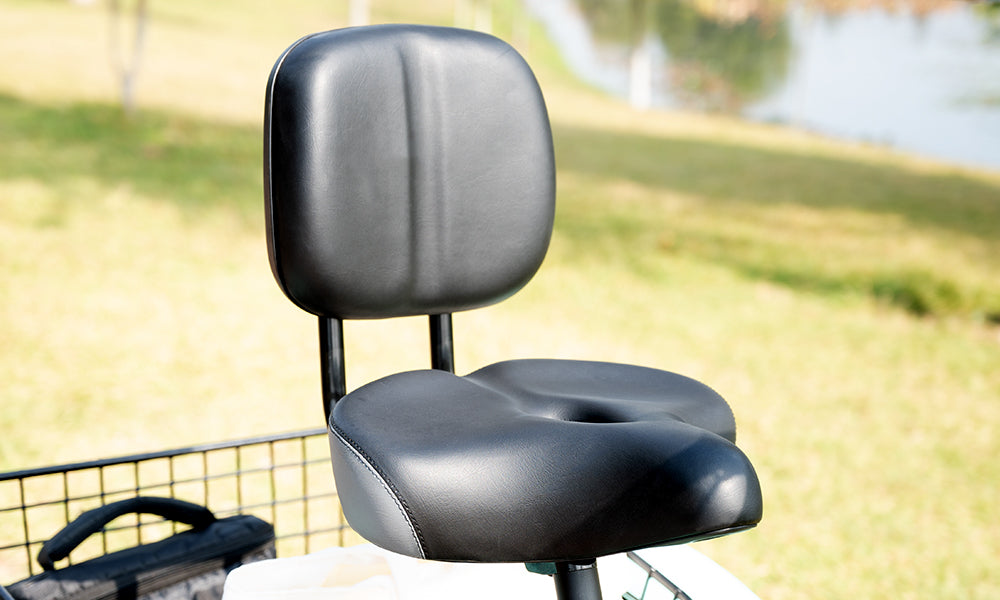

Vacuum Foam Seat
With a robust 400 lbs weight capacity, this chair boasts a generously padded vacuum-foam seat and ergonomic backrest, providing unparalleled comfort and support for every ride.

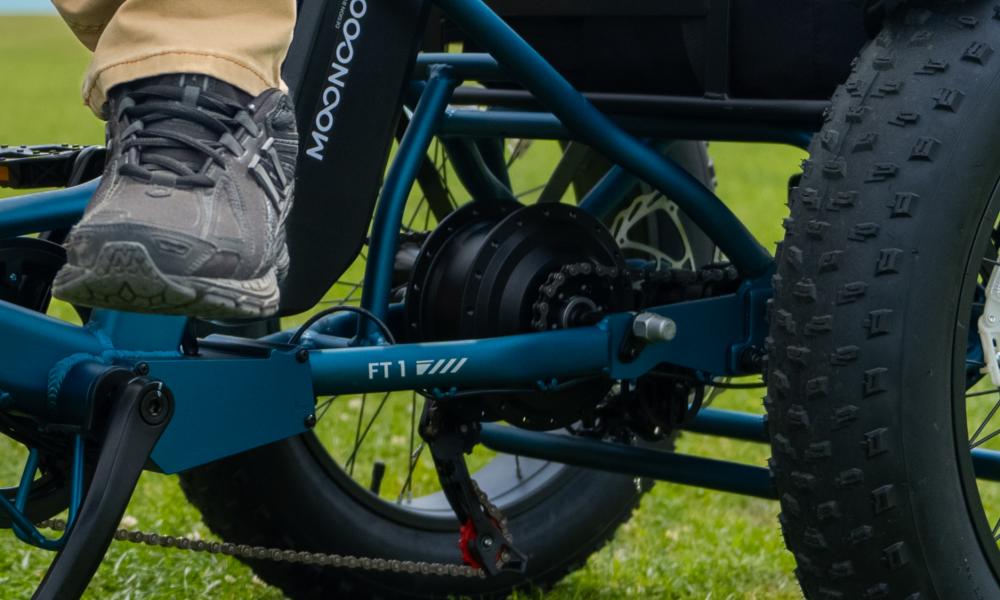

Rear Drive Motor
500W rated power, with instant peak power surging to 1092W ensures no skidding during riding. Paired with a differential, it delivers more efficient power transmission.

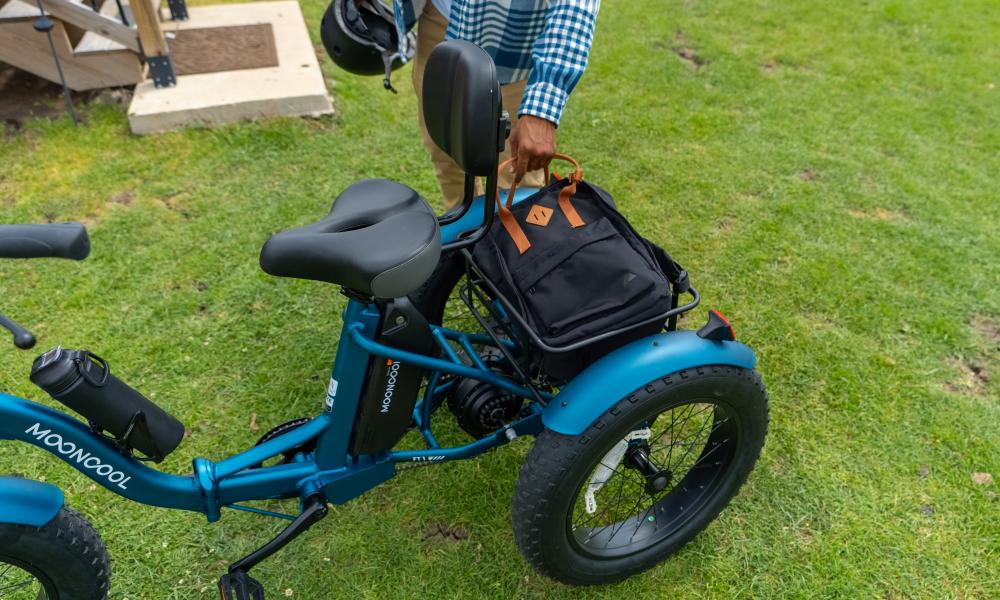

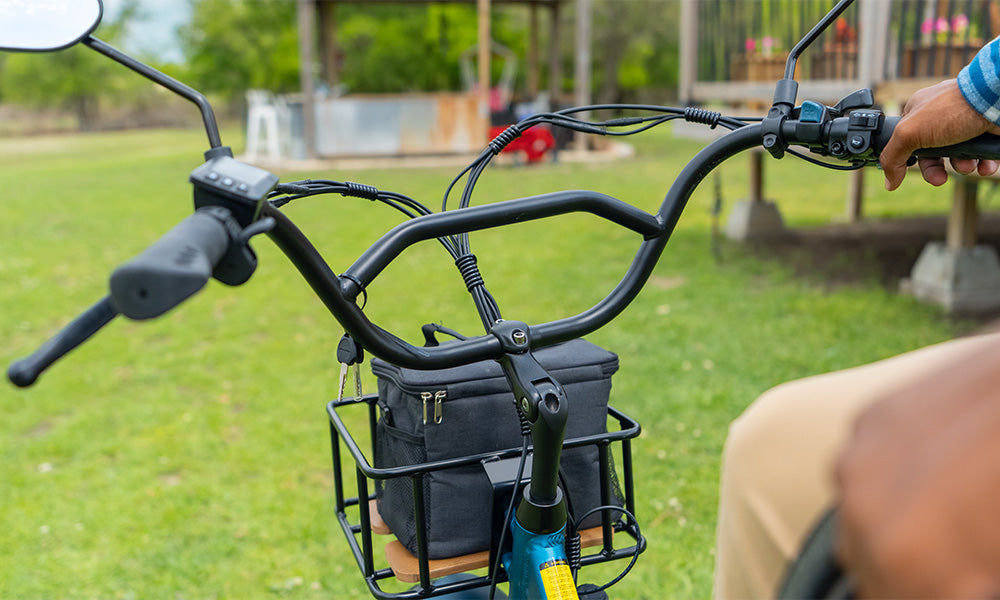

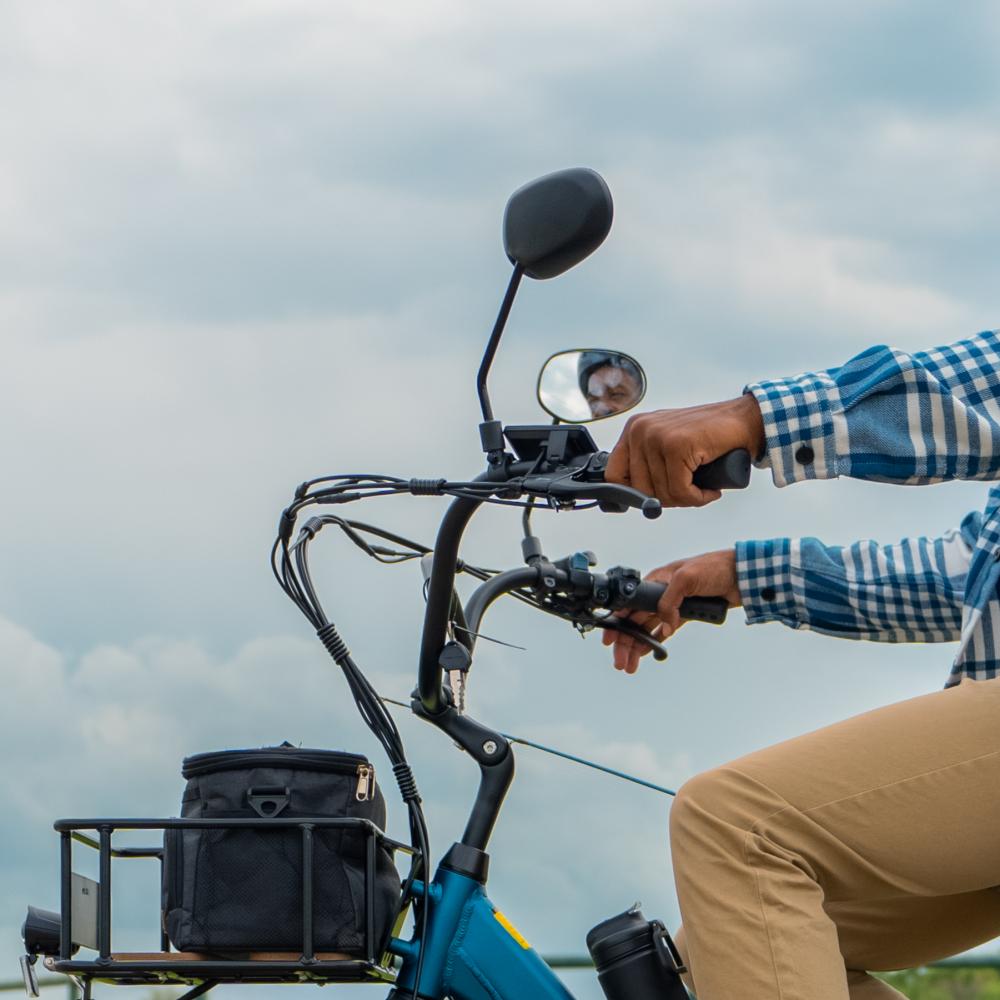

Large Front & Rear Baskets
With spacious front & rear baskets, it provides ample room for personal items or larger cargo, adding a level of convenience and practicality to your rides.

Parking Brake
The parking brake keeps the trike securely in place when stopped, preventing rolling on slopes or uneven ground. Easy to engage and release, it adds peace of mind for a safer, more comfortable ride.
Your reliable travel buddy
Assembly Video
Our assembly videos will walk you through assembly
FAQs
How assembled is the trike when it's delivered, and is it easy to finish the assembly myself?
The trike arrives 90% pre-assembled for your convenience. The remaining assembly is straightforward and can be completed with just a bit of DIY — no need to be a professional. You'll be ready to ride in no time!
Is the trike suitable for seniors or individuals with disabilities?
Yes, indeed. Our trike is designed with ease of use and stability in mind, making it a great choice for older adults and persons with disabilities who are looking for a safe and comfortable riding experience.
Does the electric trike come with a battery and both front and rear baskets included?
Yes, it does. The trike comes equipped with a battery, and we include both a front and a rear basket as standard features, so you have everything you need to get started right away.
What's the recommended height for someone riding the FT1 ?
The FT1 is designed for riders who are between 5'-6'3" tall for optimal comfort and performance.
